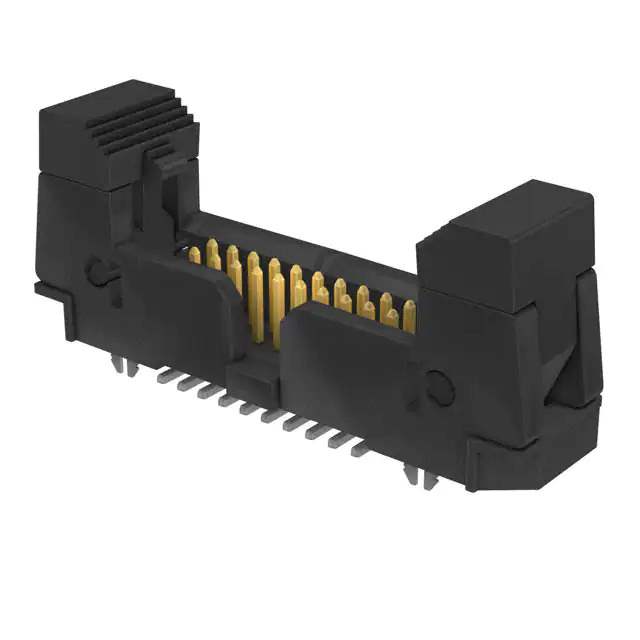

EHF-110-01-F-D-SM-LC

Name: EHF-110-01-F-D-SM-LC
Brand: Samtec Inc.
SKU: 917957
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EHF-110-01-F-D-SM-LC
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 1.27MM / Connector Header Surface Mount 20 position 0.050" (1.27mm)
Datasheet	EHF-110-01-F-D-SM-LC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	EHF
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.325" (8.25mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Board Lock, Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	1.75A
Base Product Number	EHF-110
Standard Package	20 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	917957-EHF-110-01-F-D-SM-LC
Ultra Librarian 3D Model	Ultra Librarian EHF-110-01-F-D-SM-LC CAD Model

Alternative Products

Description

The EHF series header connector from Samtec Inc. is a versatile and reliable solution for your electronic connectivity needs.

Manufacturer: Samtec Inc.
Positions: 20
Rows: 2
Features: Board Lock and Keying Slot
Contact Type: Male Pin
Termination: Surface Mount
Fastening Type: Latch Lock/Eject Hooks
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Temperature Range: -55°C to 125°C
Package: Tube
Package Quantity: 20 pcs
