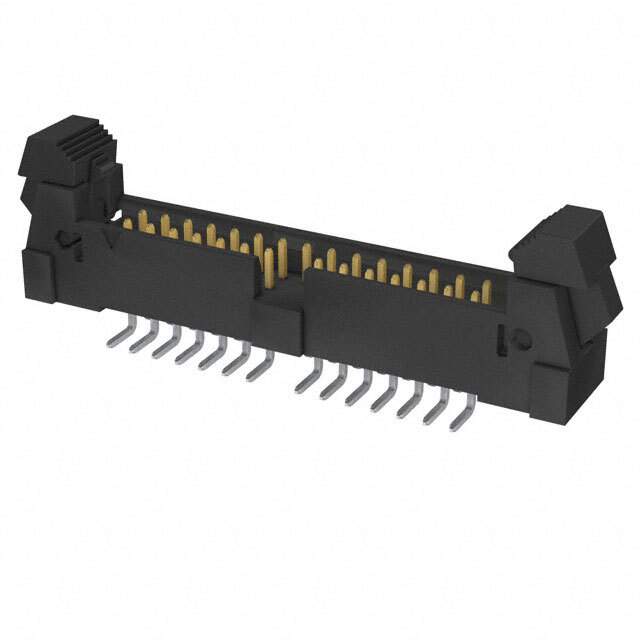

EHT-115-01-S-D-SM-15-K

Name: EHT-115-01-S-D-SM-15-K
Brand: Samtec Inc.
SKU: 962663
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EHT-115-01-S-D-SM-15-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 30POS 2MM / Connector Header Surface Mount 30 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	EHT
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	30
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	29
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.370" (9.40mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	EHT-115
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	962663-EHT-115-01-S-D-SM-15-K
Ultra Librarian 3D Model	Ultra Librarian EHT-115-01-S-D-SM-15-K CAD Model

Alternative Products

Description

The Samtec Inc. EHT-115-01-S-D-SM-15-K is a board-to-cable/wire connector with a 2.00mm pitch mating and 30 positions loaded in a 2-row configuration.

Product Name: EHT-115-01-S-D-SM-15-K
Manufacturer: Samtec Inc.
Type: Board-to-Cable/Wire Connector
Pitch Mating: 2.00mm
Positions: 30
Rows: 2
Fastening: Latch Lock/Eject Hooks
Insulation: Shrouded 4-Wall
Contact Material: Phosphor Bronze
Mating Contact Finish: Gold (30.0µin)
Post Contact Finish: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Operating Temperature: -55°C to 125°C
