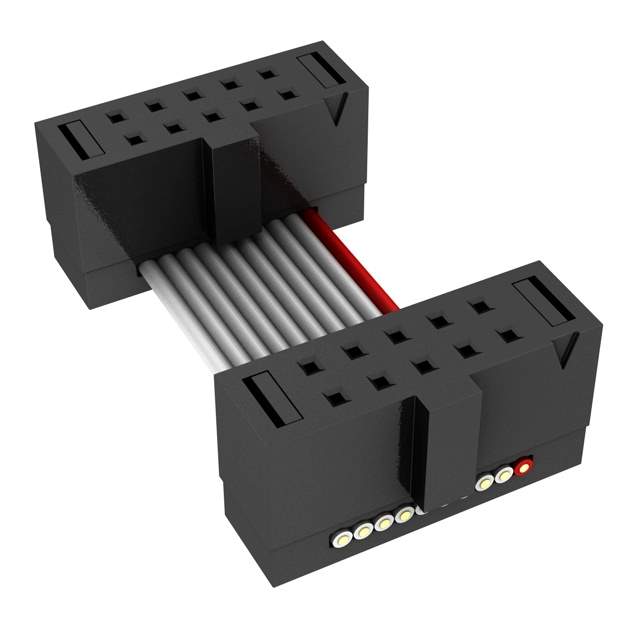

FFSD-05-D-03.00-01-N Real Image
Same model may have multiple batches, images only for reference.

FFSD-05-D-03.00-01-N

Part No FFSD-05-D-03.00-01-N
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Description CABLE ASSEM .05" 10POS 3" / Cable Assembly 0.076m 30AWG 1.27mm 10 to 10 POS IDC Connector to IDC Connector F-F TIGER EYE™ Bulk
Datasheet
FFSD-05-D-03.00-01-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Samtec Inc.
Series Tiger Eye FFSD
Connector Type Socket to Socket
Number of Positions 10
Number of Rows 2
Pitch - Connector 0.050" (1.27mm)
Pitch - Cable 0.025" (0.64mm)
Length 0.250' (76.20mm, 3.00")
Features Polarizing Tab
Color Gray, Ribbon
Shielding Unshielded
Cable Termination IDC
Contact Finish Gold
Contact Finish Thickness 10μin (0.25μm)
Win Source Part Number 774526-FFSD-05-D-03.00-01-N
Popularity Medium
Supply and Demand Status Limited
Family Name FFSD
Introduction Date October 08, 2003
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian FFSD-05-D-03.00-01-N CAD Model

Description

The Samtec Inc. Tiger Eye FFSD series connector is a gray, ribbon-colored socket to socket connector with a polarizing tab. It has a pitch of 0.050" for connector and 0.025" for cable.

  • Connector Length: 0.250'
  • Rows: Two
  • Positions: 10
  • Shielded: Yes
  • Contact Finish: Gold
  • Contact Finish Thickness: 10μin
  • ECCN: EAR99
  • Halogen-Free: Yes
  • Popularity: Medium
  • Manufactured in: China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, and Vietnam
  • Series: Tiger Eye FFSD
  • Suitable for: Cable Assemblies
