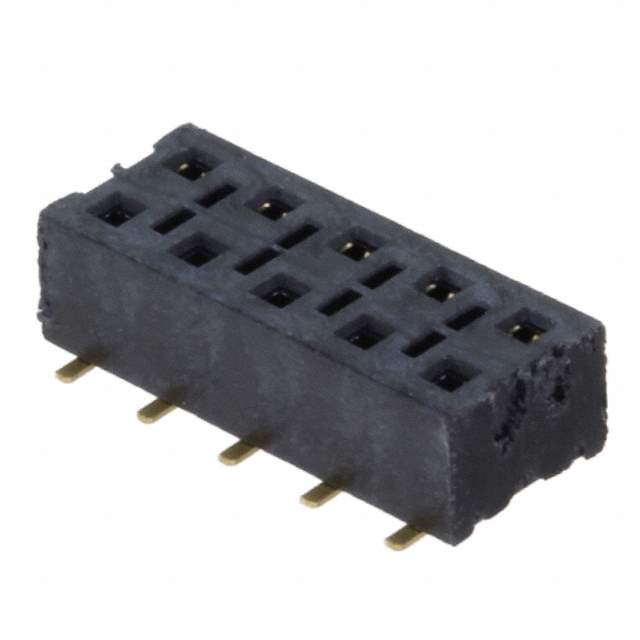

HLE-105-02-G-DV Real Image
Same model may have multiple batches, images only for reference.

HLE-105-02-G-DV

Part No HLE-105-02-G-DV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description .100 TIGER BEAM SKT ASSY / Conn Socket Strip SKT 10 POS 2.54mm Solder ST SMD Tube
Datasheet
HLE-105-02-G-DV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series HLE
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20μin (0.51μm)
Insulation Color Black
Insulation Height 0.144" (3.66mm)
Operating Temperature Range -55°C ~ 125°C
Contact Finish - Post Gold
Current Rating 4.1A per Contact
Voltage Rating 400VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Contact Finish Thickness - Post 3μin (0.08μm)
Win Source Part Number 776035-HLE-105-02-G-DV
Popularity Medium
Supply and Demand Status Limited
Family Name HLE
Introduction Date October 07, 2003
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HLE-105-02-G-DV CAD Model

Description

The HLE-105-02-G-DV is a square-shaped, female socket connector from Samtec Inc.

  • Positions: 10 (all loaded)
  • Temperature Range: -55°C to 125°C
  • Voltage Rating: 400VAC
  • Current Rating: 4.1A per contact
  • Mounting: SMD
  • Packaging: Tube
  • Pitch: 0.100 inches (2.54mm)
  • Row Spacing: 0.100 inches (2.54mm)
  • Insulation Height: 0.144 inches (3.66mm)
  • Halogen-Free: Compliant
  • Estimated EOL Date: 2027
  • Popularity: Medium
  • Supply and Demand Status: Limited
