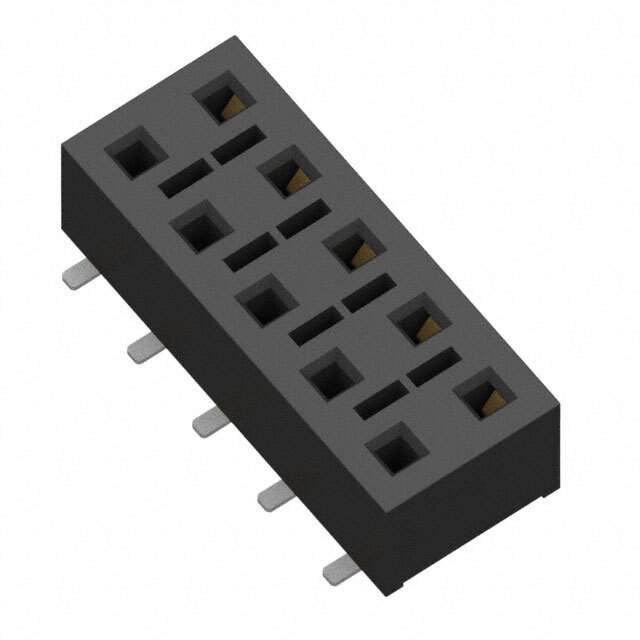

Same model may have multiple batches, images only for reference.

HLE-105-02-L-DV-BE-K-TR

Name: HLE-105-02-L-DV-BE-K-TR
Brand: Samtec Inc.
SKU: 458626
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HLE-105-02-L-DV-BE-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.100 TIGER BEAM SOCKET ASSEMBLY
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Reel - TR
Status	Active
Connector Type	Receptacle, Bottom Entry
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	2.54mm
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Insulation Color	Black
Insulation Height	0.144" (3.66mm)
Temperature Range - Operating	-55°C to 125°C
Contact Finish - Post	Tin
Features	Pick and Place
Current Rating	4.1A per Contact
Voltage Rating	400VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Win Source Part Number	1043528-HLE-105-02-L-DV-BE-K-TR
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian HLE-105-02-L-DV-BE-K-TR CAD Model

Alternative Products

Description

The Samtec Inc. 1043528-HLE-105-02-L-DV-BE-K-TR is a Board-to-Board connector with a receptacle, bottom entry connector type.

Connector Type: Board-to-Board, Receptacle, Bottom Entry
Positions Loaded: 10
Rows: 2
Pitch-Mating: 2.54mm
Mounting Type: SMD (SMT)
Fastening Type: Push-Pull
Contact Finish-Mating: Gold, 10μin (0.25μm)
Contact Finish-Post: Tin
Voltage Rating: 400VAC
Current Rating: 4.1A per contact
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Operating Temperature: -55°C to 125°C
Category: Connectors and Interconnects
Supply and Demand Status: Balanced
Popularity: Medium
