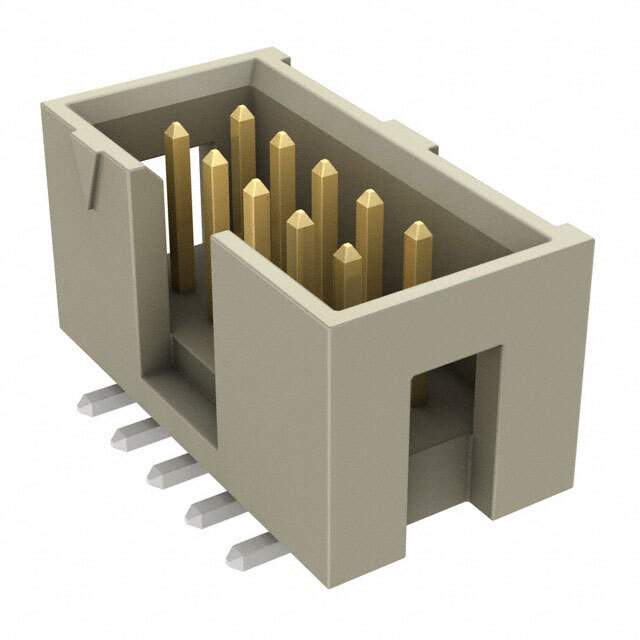

The HTST-105-01-S-DV-P-FR is a surface mount, high-temperature terminal strip from Samtec. It is designed for board-to-board connections and offers a robust and reliable interconnect solution for various applications, especially those requiring high-temperature performance.

Applications

• Board-to-board connections in electronic assemblies
• High-temperature industrial equipment
• Automotive electronics
• Medical devices
• Aerospace applications
• Testing and burn-in sockets

Features

• Number of Positions: 10
• Number of Rows: 2
• Pitch: 0.050" (1.27 mm)
• Mounting Type: Surface Mount
• Termination: Solder
• Insulation Height: 0.175" (4.45 mm)
• Contact Material: Phosphor Bronze
• Plating: Gold
• Operating Temperature: -55°C to +125°C
• High Temperature Plastic
• Polarization: Yes

Benefits

• Provides a reliable and durable board-to-board connection.
• High-temperature operation ensures performance in demanding environments.
• Fine pitch allows for high-density connections.
• Surface mount design simplifies assembly and reduces manufacturing costs.
• Gold plating provides excellent electrical conductivity and corrosion resistance.
• Polarization prevents mis-mating and ensures proper connection.
• Robust construction ensures long-term reliability.

Additional Details

The HTST-105-01-S-DV-P-FR terminal strip is designed for automated placement and soldering processes. The high-temperature plastic material is compatible with reflow soldering processes. Samtec offers a variety of mating connectors to be used with this terminal strip. The FR indicates a full row of solder charge. The part is RoHS compliant.
