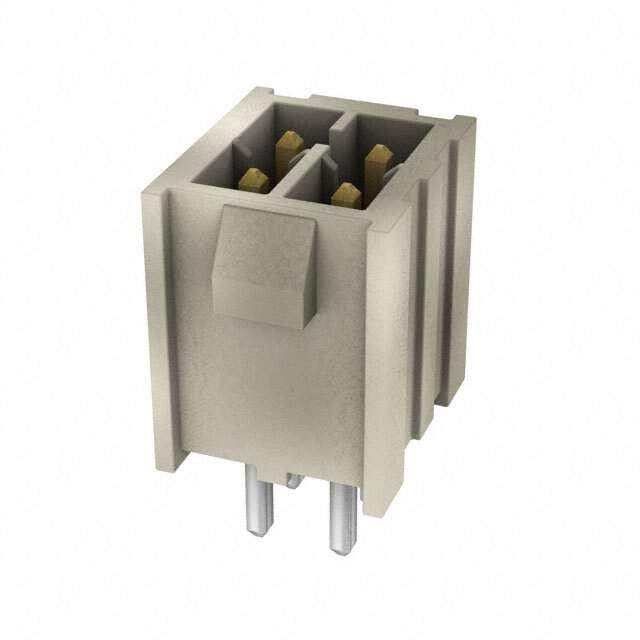

Same model may have multiple batches, images only for reference.

IPL1-102-01-L-D-K

Name: IPL1-102-01-L-D-K
Brand: Samtec Inc.
SKU: 921309
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IPL1-102-01-L-D-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 2.54MM
Datasheet	IPL1-102-01-L-D-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	8 Weeks
Features	Connector Header Through Hole 4 position 0.100" (2.54mm)
Manufacturer	Samtec Inc.
Series	Mini Mate® IPL1
Package	Tube
Operating Temperature Range	-55°C ~ 125°C
Mounting	Through Hole
Family Name	IPL1-102
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	IPL1-102-01-L-D-K-ND, SAM10565
Quantity per package	1
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	921309-IPL1-102-01-L-D-K
Ultra Librarian 3D Model	Ultra Librarian IPL1-102-01-L-D-K CAD Model

Alternative Products

Description

The Samtec Inc. IPL1-102-01-L-D-K is a 4 position 0.100" (2.54mm) Connector Header that comes in a through-hole mountable package.

Category: Connectors
Series: Mini Mate® IPL1 series
Operating Temperature: -55°C to 125°C
Package: tube package
Quantity per Package: 1
HTSUS code: 8536.69.4040
ECCN: EAR99
Supply and demand: balanced
Estimated production lead time: 8 weeks
REACH: REACH unaffected
