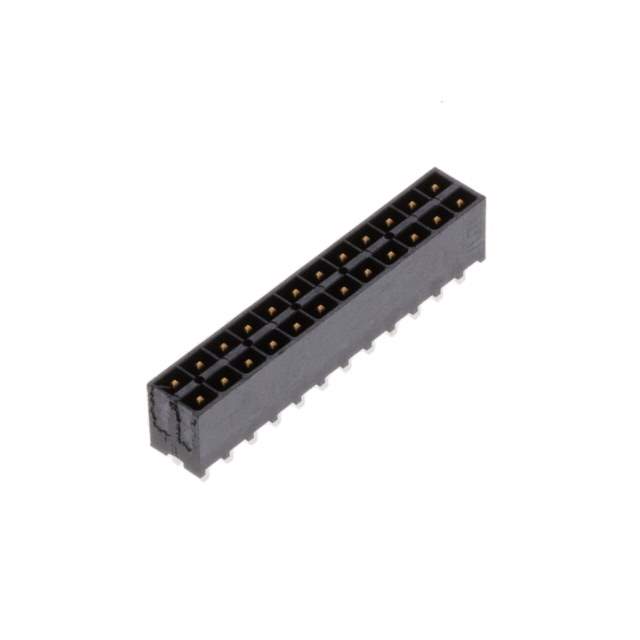

IPT1-112-01-S-D Real Image
Same model may have multiple batches, images only for reference.

IPT1-112-01-S-D

Part No IPT1-112-01-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 24POS 2.54MM  /  Connector Header Through Hole 24 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Mini Mate® IPT1
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.155" (3.94mm)
Contact Length - Post 0.085" (2.16mm)
Overall Contact Length 0.335" (8.51mm)
Insulation Height 0.250" (6.35mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.3A per Contact
Voltage Rating 775VAC, 1095VDC
Base Product Number IPT1-112
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 612-IPT1-112-01-S-D,IPT1-112-01-S-D-ND
Standard Package 18
Win Source Part Number 1224989-IPT1-112-01-S-D
Ultra Librarian 3D Model Ultra Librarian IPT1-112-01-S-D CAD Model

Description

The Samtec Inc. 1224989-IPT1-112-01-S-D is a male pin header connector that is part of the Mini Mate® IPT1 series.

  • Positions: 24
  • Contacts Loaded: all
  • Shrouded: 4 walls
  • Mounting Type: through-hole
  • Contact Material: phosphor bronze
  • Voltage Rating: 775VAC and 1095VDC
  • Contact Finish: gold with a thickness of 30.0µin for mating and tin for post
  • Pitch-Mating: 0.100" (2.54mm)
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Operating Temperature Range: -55°C to 125°C
