Same model may have multiple batches, images only for reference.

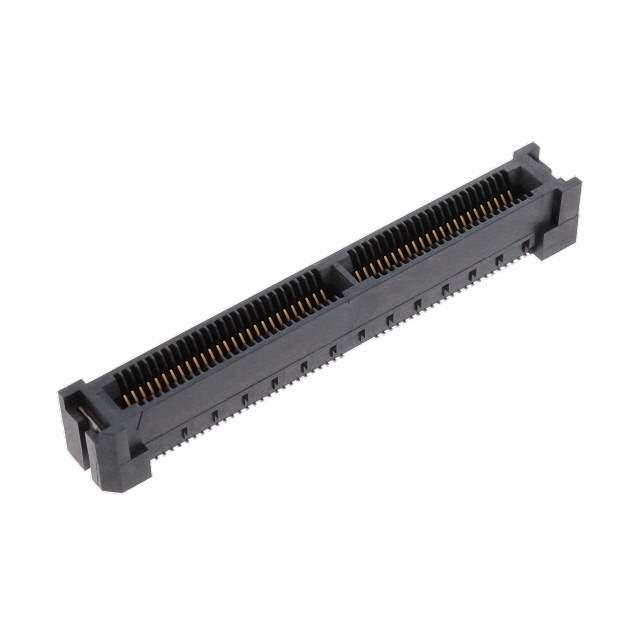

HSEC8-150-01-L-DV-A-WT-K-TR Real Image
Same model may have multiple batches, images only for reference.

HSEC8-150-01-L-DV-A-WT-K-TR

Part No HSEC8-150-01-L-DV-A-WT-K-TR
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FML 100POS 0.031 / 100 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
Datasheet
HSEC8-150-01-L-DV-A-WT-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer Samtec Inc.
Packaging Reel - TR
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 50
Number of Positions 100
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide, Solder Retention
Mounting Surface Mount
Termination Solder
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number HSEC8-150
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number ,612-HSEC8-150-01-L-DV-A-WT-K-CT,612-HSEC8-150-01-L-DV-A-WT-K-TR,HSEC8-150-01-L-DV-A-WT-K-TR-ND
Standard Package 275
Win Source Part Number 1334046-HSEC8-150-01-L-DV-A-WT-K-TR
Ultra Librarian 3D Model Ultra Librarian HSEC8-150-01-L-DV-A-WT-K-TR CAD Model

Description

The 1334046-HSEC8-150-01-L-DV-A-WT-K-TR from Samtec Inc. is a surface mount card edge connector with a 0.80mm pitch and 100 positions.

  • Mounting: Surface Mount
  • Pitch: 0.80mm
  • Positions: 100
  • Color: Black
  • Gender: Female
  • Contact Type: Cantilever
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Standard Package: 275
  • ROHS3 Compliant: Yes
