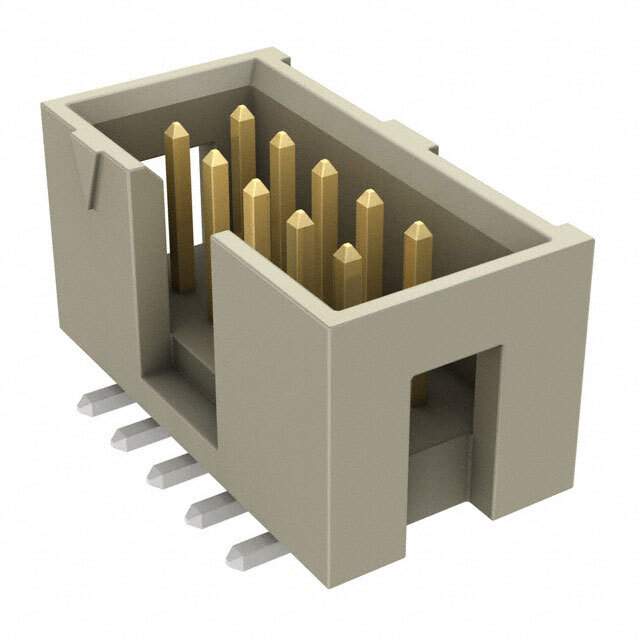

HTST-105-01-F-DV

Name: HTST-105-01-F-DV
Brand: Samtec Inc.
SKU: 1293212
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HTST-105-01-F-DV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	HTST-105-01-F-DV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, HTST
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3.4A per Contact
Base Product Number	HTST-105
Other Names	SAM11357,HTST-105-01-F-DV
Standard Package	27
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293212-HTST-105-01-F-DV
Ultra Librarian 3D Model	Ultra Librarian HTST-105-01-F-DV CAD Model

Alternative Products

Description

This is a male pin header connector from the Flex Stack, HTST series.

Series: Flex Stack, HTST
Rows: 2
Positions: 10
Positions Loaded: All
Keying: Keying Slot
Fastening Type: Push-Pull
Voltage Rating: -
Contact Material: Phosphor Bronze
Mounting: SMD (SMT)
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Gold, 3.00µin (0.076µm)
Contact Finish-Post: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Natural
Material Flammability Rating: UL94 V-0
Temperature Range: -55°C ~ 125°C
Package: Tube
Standard Package: 27
