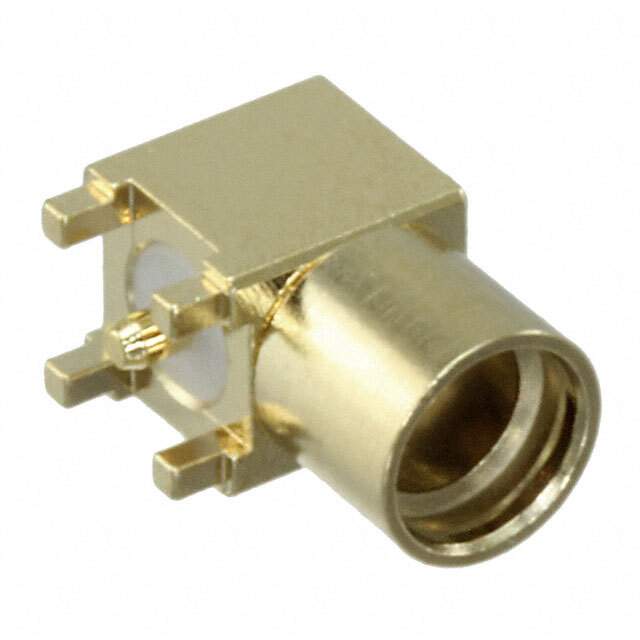

MMCX-J-P-H-RA-SM1 Real Image
Same model may have multiple batches, images only for reference.

MMCX-J-P-H-RA-SM1

Part No MMCX-J-P-H-RA-SM1
Manufacturer Samtec Inc.
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN MMCX JACK R/A 50 OHM SMD / MMCX Connector Jack, Female Socket 50Ohm Surface Mount, Right Angle Solder
Datasheet
MMCX-J-P-H-RA-SM1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Samtec Inc.
Package Tray
Connector Style MMCX
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Surface Mount, Right Angle
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Copper Alloy
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 125°C
Voltage Rating 500 V
Base Product Number MMCX-J
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 1341412-MMCX-J-P-H-RA-SM1
Ultra Librarian 3D Model Ultra Librarian MMCX-J-P-H-RA-SM1 CAD Model

Description

The Samtec Inc. Coaxial Connector Assembly is a connector used to connect two coaxial cables together.

  • Connector Type: Jack, Female Socket
  • Fastening Type: Snap-On
  • Voltage Rating: 500V
  • Maximum Frequency: 6 GHz
  • Impedance: 50Ohm
  • Mounting Type: Surface Mount
  • Mounting Orientation: Right Angle
  • Package: Tray
  • Standard Package: 1
  • Temperature Range: -65°C to 125°C
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4010
