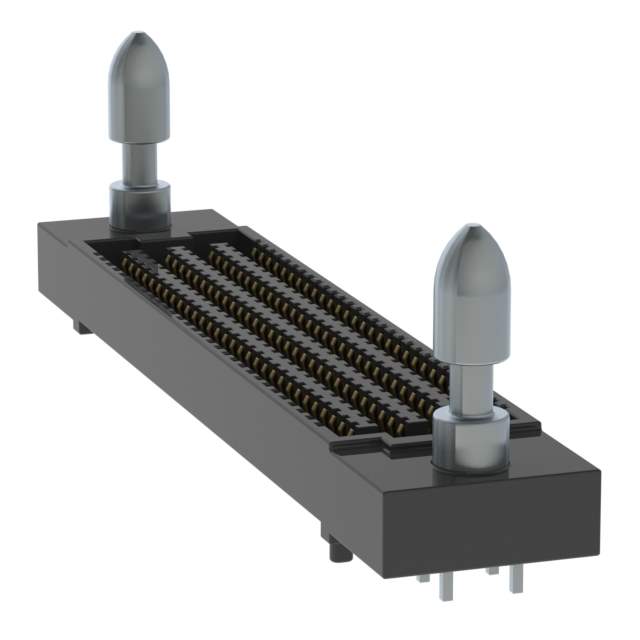

SEAF-30-05.0-L-08-2-A-K-LP-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-30-05.0-L-08-2-A-K-LP-TR

Part No SEAF-30-05.0-L-08-2-A-K-LP-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-30-05.0-L-08-2-A-K-LP-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Product Status Obsolete
Connector Type High Density Array, Female
Number of Positions 240
Pitch 0.050" (1.27mm)
Number of Rows 8
Mounting SMD (SMT)
Features Board Guide, Latches, Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board 0.199" (5.05mm)
Base Product Number SEAF-30
Standard Package 125
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293556-SEAF-30-05.0-L-08-2-A-K-LP-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-30-05.0-L-08-2-A-K-LP-TR CAD Model

Description

The SEAF-30-05.0-L-08-2-A-K-LP-TR is a high-density array, female connector from Samtec Inc.

  • Series: SEARAY™ SEAF
  • Positions: 240
  • Rows: 8
  • Pitch: 0.050" (1.27mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Features: Board guide, latches, pick and place
  • Mounting Type: SMD (SMT)
  • Height Above Board: 0.199" (5.05mm)
  • Mated Stacking Heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, and 18mm
  • Status: Obsolete
  • Package: Tape and reel
