Same model may have multiple batches, images only for reference.

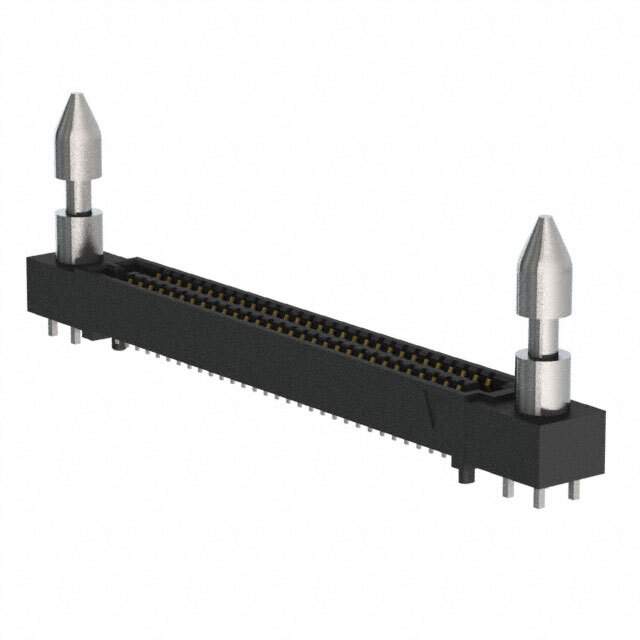

SEAF-30-05.0-S-04-1-A-LP-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-30-05.0-S-04-1-A-LP-K-TR

Part No SEAF-30-05.0-S-04-1-A-LP-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-30-05.0-S-04-1-A-LP-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 120
Pitch 0.050" (1.27mm)
Number of Rows 4
Mounting SMD (SMT)
Features Board Guide, Latches, Pick and Place
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board 0.199" (5.05mm)
Base Product Number SEAF-30
Standard Package 100
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293763-SEAF-30-05.0-S-04-1-A-LP-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-30-05.0-S-04-1-A-LP-K-TR CAD Model

Description

The SEARAY™ SEAF series is a high-density array, female connector type that is perfect for rectangular connectors in edge type, mezzanine (board to board) applications.

  • Positions: 120
  • Pitch: 0.050 inches (1.27mm)
  • Features: Board guide, latches, and pick and place features
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mounting: SMD (SMT)
  • Package: Tape and reel
  • Mated Stacking Heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, and 18mm
  • Height Above Board: 0.199 inches (5.05mm)
  • Base Product Number: SEAF-30
  • RoHS: Non-compliant
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
