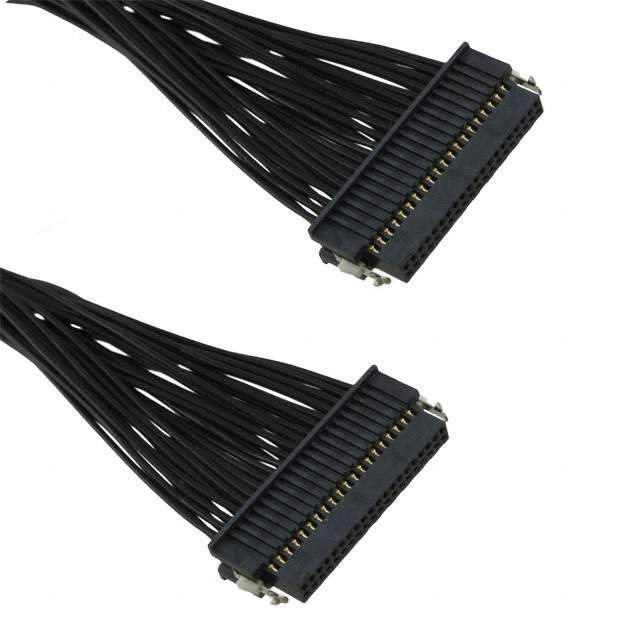

SFSD-20-28-H-10.00-DR-NDS Real Image
Same model may have multiple batches, images only for reference.

SFSD-20-28-H-10.00-DR-NDS

Part No SFSD-20-28-H-10.00-DR-NDS
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Datasheet
SFSD-20-28-H-10.00-DR-NDS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series Tiger Eye™ SFSD
Package Bulk
Connector Type Socket to Socket
Number of Positions 40
Number of Rows 2
Pitch - Connector 0.050" (1.27mm)
Length 0.833' (254.00mm, 10.00")
Features Latch Lock, Polarizing Key
Color Black, Individual
Shielding Unshielded
Cable Termination Crimp
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number SFSD-20
Other Names SAM8695
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1310014-SFSD-20-28-H-10.00-DR-NDS
Ultra Librarian 3D Model Ultra Librarian SFSD-20-28-H-10.00-DR-NDS CAD Model

Description

The Tiger Eye™ SFSD 1310014-SFSD-20-28-H-10.00-DR-NDS is a rectangular cable assembly with 40 positions and a socket to socket connector type.

  • Features: latch lock and polarizing key features ensure secure connections
  • Contact Finish: gold contact finish with a thickness of 30.0µin (0.76µm) ensures high-quality performance
  • Cable Termination: crimp
  • Package: bulk with a length of 0.833' (254.00mm, 10.00")
