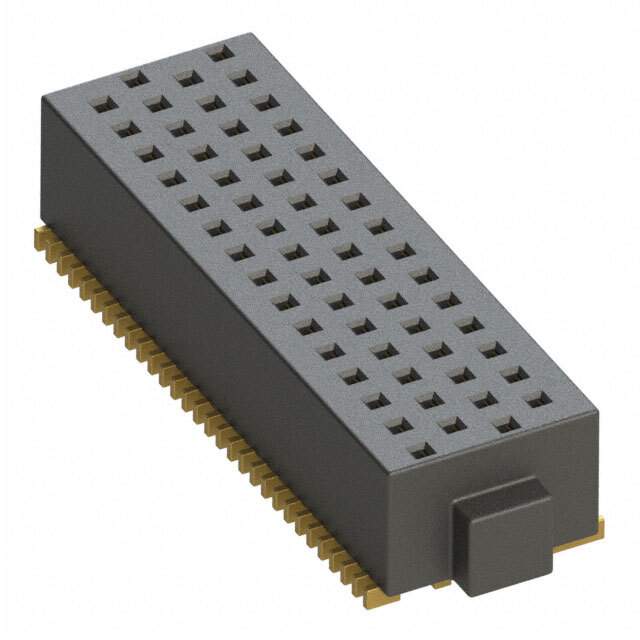

Same model may have multiple batches, images only for reference.

SOLC-115-02-S-Q-P-TR

Name: SOLC-115-02-S-Q-P-TR
Brand: Samtec Inc.
SKU: 1293076
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SOLC-115-02-S-Q-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SOLC-115-02-S-Q-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	FOURRAY™ SOLC
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	60
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	4
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.160" (4.06mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Pick and Place
Current Rating (Amps)	2.4A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SOLC-115
Other Names	SOLC-115-02-S-Q-P-TR,SAM14562TR,SAM14562CT,SAM14562DKR
Standard Package	400
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293076-SOLC-115-02-S-Q-P-TR
Ultra Librarian 3D Model	Ultra Librarian SOLC-115-02-S-Q-P-TR CAD Model

Alternative Products

Description

The SOLC-115-02-S-Q-P-TR is a board-to-board connector manufactured by Samtec Inc.

Series: FOURRAY™ SOLC
Positions: 60
Feature: Pick-and-Place
Connector Type: Receptacle
Contact Type: Forked
Positions Loaded: All
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Pitch-Mating: 0.050" (1.27mm)
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 30.0µin (0.76µm)
Contact Finish-Post: Gold - 3.00µin (0.076µm)
Insulation Color: Black
Contact Shape: Square
Temperature Range: -55°C to 125°C
