Same model may have multiple batches, images only for reference.

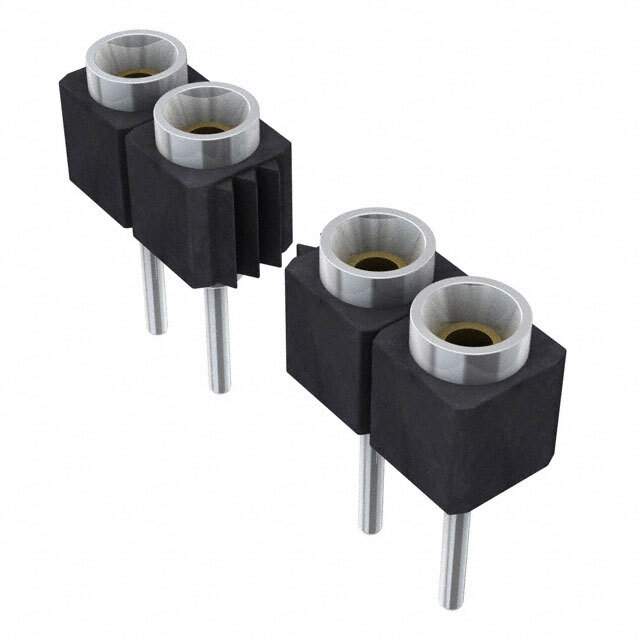

SS-110-T-2-N Real Image
Same model may have multiple batches, images only for reference.

SS-110-T-2-N

Part No SS-110-T-2-N
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SS-110-T-2-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SS
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.100" (2.54mm)
Contact Length - Post 0.125" (3.18mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SS-110
Other Names SAM1118-10
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292123-SS-110-T-2-N
Ultra Librarian 3D Model Ultra Librarian SS-110-T-2-N CAD Model

Description

The SS series from Samtec Inc. offers a reliable solution for board-to-board applications.

  • Connector Type: Receptacle
  • Positions: 10 positions loaded
  • Contact Type: Female Sockets
  • Pitch: 0.100" (2.54mm)
  • Fastening Type: Push-Pull
  • Mounting: Through-Hole
  • Voltage Rating: 250VAC
  • Current Rating: 3A
  • Contact Material: Beryllium Copper
  • Insulation Material: Polybutylene Terephthalate (PBT) with glass filling
  • RoHS Compliant: Yes
  • Material Flammability Rating: UL94 V-0
