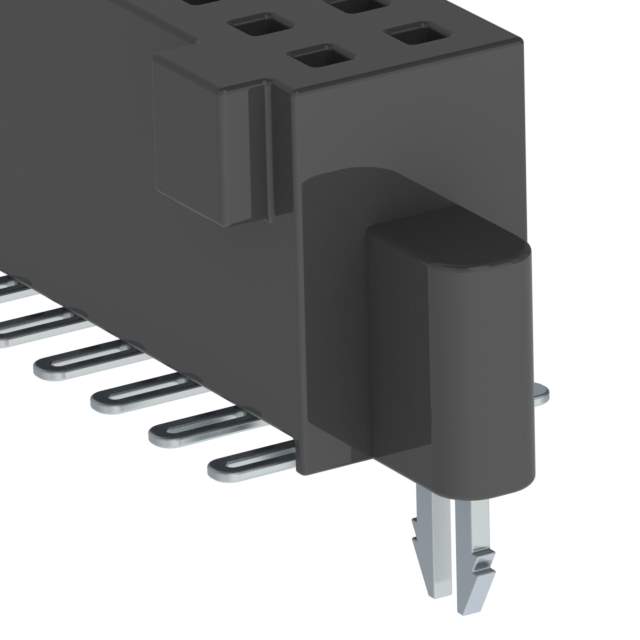

The Samtec Inc. 1287166-SFM-150-L2-S-D-LC-K electronic component is a rectangular connector with headers, receptacles, and female sockets.

• Positions: 100
• Features: Board lock and pick and place
• Connector Type: Receptacle
• Contact Type: Female socket
• Positions Loaded: All
• Rows: 2
• Termination: Solder
• Fastening Type: Push-pull
• Series: Tiger Eye™ SFM
• Popularity: Low
• Package: Tube
• Contact Material: Beryllium copper
• Voltage Rating: 250VAC
• Insulation Material: Liquid crystal polymer (LCP)
• Style: Board to board or cable
• Pitch - Mating: 0.050" (1.27mm)
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 30.0µin (0.76µm)
• Contact Finish - Post: Tin
• Insulation Color: Black
• Row Spacing - Mating: 0.050" (1.27mm)
• Insulation Height: 0.185" (4.70mm)
• Contact Shape: Square
• Temperature Range - Operating: -55°C ~ 125°C
• MSL Level: 1 (Unlimited)
• HTSUS: 8536.69.4040
