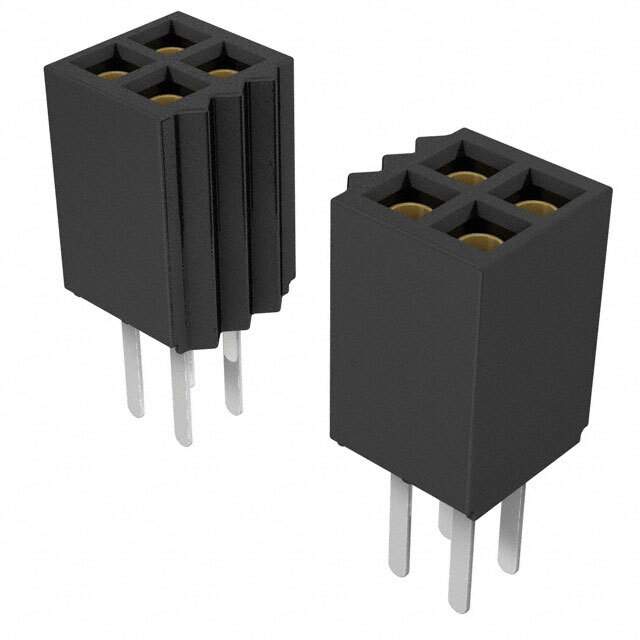

The Samtec Inc. SFMC-120-01-L-D-K-TR is a rectangular connector with headers, receptacles, and female sockets from the connectors and interconnects category.

• Series: Tiger Eye™ SFMC
• Positions: 40
• Pick and Place: Yes
• Connector Type: Receptacle
• Contact Type: Female Socket
• Positions Loaded: All
• Rows: 2
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tape and Reel (TR)
• Standard Package: 475
• Contact Material: Beryllium Copper
• Insulation Material: Liquid Crystal Polymer (LCP)
• Application: Board to Board or Cable
• Pitch-Mating: 0.050" (1.27mm)
• Contact Finish-Mating: Gold (10.0μin (0.25μm))
• Contact Finish-Post: Tin
• Insulation Color: Black
• Mounting: Through-Hole
• Row Spacing-Mating: 0.050" (1.27mm)
• Contact Length-Post: 0.120" (3.05mm)
• Insulation Height: 0.180" (4.57mm)
• Contact Shape: Square
• Temperature Range: -55°C to 125°C
• ECCN: EAR99
• Current Rating: 9A per contact (misread, likely should be 2.9)
• HTSUS Code: 8536.69.4040
