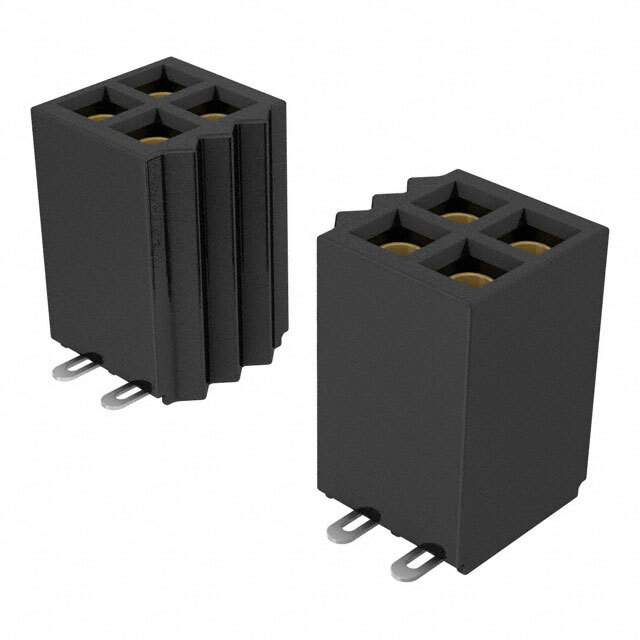

The SFMC-134-L2-S-D-K-TR is a rectangular connector that belongs to the category of connectors, interconnects.

• Series: Tiger Eye™ SFMC
• Positions: 68
• Pick and Place: Yes
• Connector Type: Receptacle
• Contact Type: Female Socket
• Positions Loaded: All
• Rows: 2
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tape & Reel (TR)
• Contact Material: Beryllium Copper
• Voltage Rating: -
• Mated Stacking Heights: Not Available
• Ingress Protection: Not Available
• Material Flammability Rating: UL94 V-0
• Applications: Not Available
• Standard Package: 125
• Mounting Type: Surface Mount Device (SMD)
• Insulation Material: Liquid Crystal Polymer (LCP)
• Style: Board to Board or Cable
• Pitch - Mating: 0.050" (1.27mm)
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 30.0μin (0.76μm)
• Contact Finish - Post: Tin
• Contact Finish Thickness - Post: Not Available
• Insulation Color: Black
• Row Spacing - Mating: 0.050" (1.27mm)
• Contact Length - Post: Not Available
• Insulation Height: 0.185" (4.70mm)
• Contact Shape: Square
• Temperature Range: -55°C to 125°C
• ECCN: EAR99
• MSL Level: 1 (Unlimited)
• Current Rating: 2.9A per contact
• HTSUS Code: 8536.69.4040
• Base Product Number: SFMC-134
