Same model may have multiple batches, images only for reference.

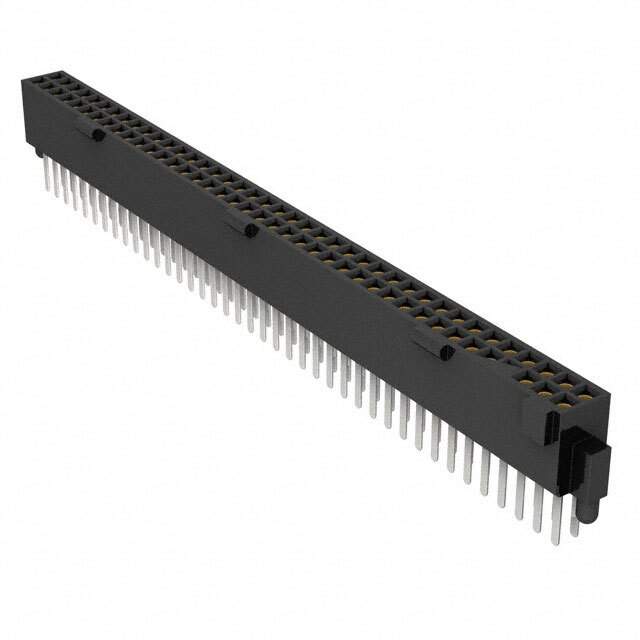

SFML-140-T1-S-D

Name: SFML-140-T1-S-D
Brand: Samtec Inc.
SKU: 768491
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFML-140-T1-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT .05" 80POS DUAL T/H / Conn Socket Strip SKT 80 POS 1.27mm Solder ST Thru-Hole TIGER EYE™ Tube
Datasheet	SFML-140-T1-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	Tiger Eye SFML
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	80
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Win Source Part Number	768491-SFML-140-T1-S-D
Popularity	Medium
Supply and Demand Status	Limited
Family Name	SFML
Introduction Date	September 18, 2001
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian SFML-140-T1-S-D CAD Model

Alternative Products

Description

The SFML-140-T1-S-D from Samtec Inc. is a Tiger Eye SFML series connector that comes in a tube packaging.

Positions: 80
Operating Temperature: -55°C to 125°C
Connector Type: Receptacle
Contact Type: Female Socket
All Positions Loaded: Yes
Rows: 2
Termination: Solder
Fastening Type: Locking Ramp
Voltage Rating: 250VAC
Current Rating: 3.2A per contact
Material Flammability Rating: UL94 V-0
Insulation Material: Liquid Crystal Polymer (LCP)
Style: Board to Board or Cable
Pitch-Mating: 0.050" (1.27mm)
Contact Finish-Mating: Gold
Contact Finish-Post: Tin
Series: SFML
Supply and Demand Status: Limited
Estimated EOL Date: 2025
Halogen-Free: Yes
Manufactured In: China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
