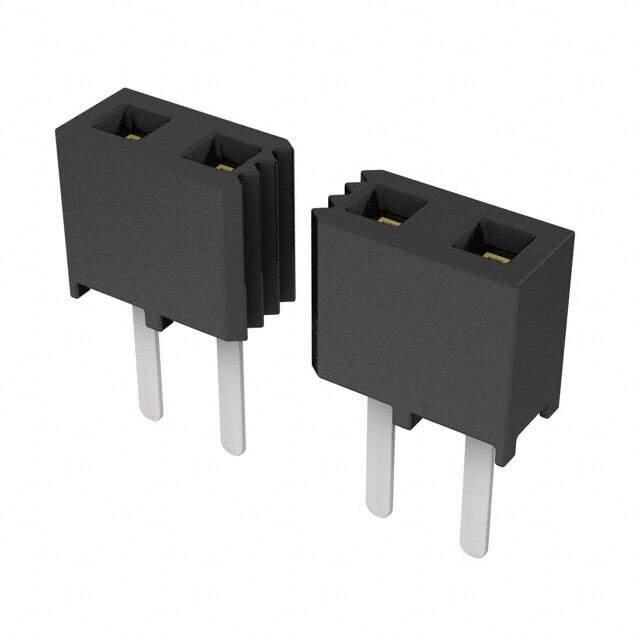

Same model may have multiple batches, images only for reference.

SMM-110-01-F-S

Name: SMM-110-01-F-S
Brand: Samtec Inc.
SKU: 1285341
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMM-110-01-F-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SMM-110-01-F-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SMM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.140" (3.56mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3.2A per Contact
Voltage Rating	350VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SMM-110
Other Names	2266-SMM-110-01-F-S
Standard Package	29
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285341-SMM-110-01-F-S
Ultra Librarian 3D Model	Ultra Librarian SMM-110-01-F-S CAD Model

Alternative Products

Description

The 1285341-SMM-110-01-F-S is a rectangular connector that belongs to the Tiger Eye™ SMM series manufactured by Samtec Inc.

Series: Tiger Eye™ SMM
Pitch: 0.079" (2.00mm)
Current Rating: 3.2A per contact
Application: Board-to-board or cable
