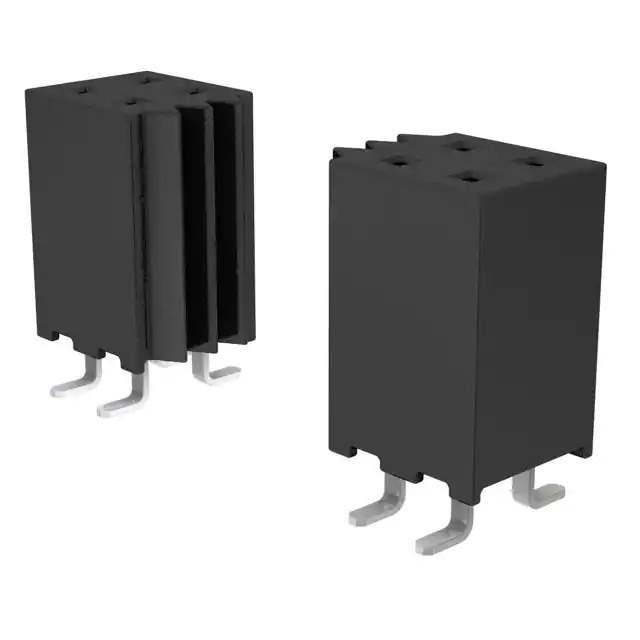

The SQW-105-01-L-D-VS is a rectangular connector from Samtec Inc.

• Connector Type: receptacle
• Contact Type: forked
• Positions: 10
• Rows Loaded: both
• Pitch: 0.079" (2.00mm)
• Connection Type: board-to-board or cable
• Contact Material: phosphor bronze
• Contact Finish - Mating: gold
• Post Finish: tin
• Current Rating: 3.8A per contact
• Operating Temperature: -55°C to 125°C
• Insulation Material: liquid crystal polymer (LCP)
• Flammability Rating: UL94 V-0
• Mounting Type: surface mountable
• Row Spacing: 0.079" (2.00mm)
• Insulation Height: 0.300" (7.62mm)
• Contact Shape: square
• Package: tube
• Standard Package Quantity: 54 pcs
