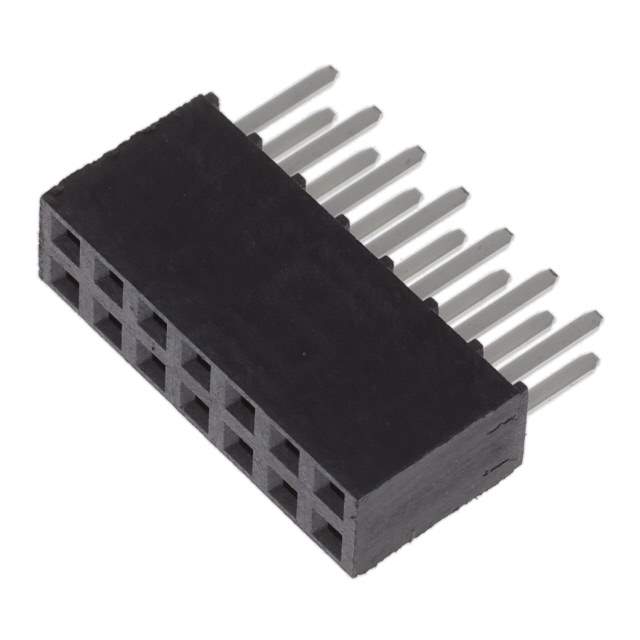

The SSW-107-02-F-D is a Samtec Inc. socket strip connector, belonging to the SSW series. This series is well-regarded for providing reliable and versatile board-to-board connections. The SSW-107-02-F-D is designed for through-hole mounting onto printed circuit boards (PCBs), thereby ensuring a mechanically secure and electrically sound connection.

Applications

• Board-to-board Connections: Commonly used to establish connections between two PCBs, facilitating communication and power transfer.
• Signal Routing: Used for routing signals within electronic devices and systems.
• Prototyping: An ideal component for prototyping circuits and electronic designs, offering easy connect and disconnect capabilities.
• Instrumentation: Used in measurement and control equipment for signal interconnection and data acquisition.
• Embedded Systems: Integrated into embedded systems for board-level connectivity.

Features

• Number of Positions: 14 (7 per row, double row) offering multiple connection points.
• Pitch: 0.100" (2.54 mm) allowing compatibility with standard PCB grid patterns.
• Mounting Type: Through-hole for secure mechanical attachment to the PCB.
• Row Spacing: 0.100" (2.54 mm) standard row spacing for easy integration.
• Body Orientation: Straight for vertical board stacking or parallel connections.
• Insulator Material: Black Liquid Crystal Polymer (LCP), chosen for its high-temperature resistance and chemical inertness.
• Contact Material: Phosphor Bronze providing a good balance of conductivity and mechanical strength.
• Plating: Gold plating on contacts to ensure low contact resistance and corrosion protection.

Benefits

• Reliable Electrical Connection: Gold-plated contacts provide a consistent and reliable electrical connection, minimizing signal degradation.
• Robust Mechanical Attachment: Through-hole mounting ensures a mechanically strong connection to the PCB, withstanding vibration and mechanical stress.
• High-Temperature Performance: LCP insulator maintains its properties at elevated temperatures.
• Versatile Connectivity: Suitable for a wide range of applications requiring board-to-board connections.
• Corrosion Resistance: Gold plating enhances resistance to corrosion, ensuring long-term reliability.

The SSW-107-02-F-D socket strip connector from Samtec provides a dependable solution for board-to-board connectivity needs. Its combination of robust materials, gold-plated contacts, and through-hole mounting makes it well-suited for demanding environments and applications requiring long-term reliability and performance.
