Same model may have multiple batches, images only for reference.

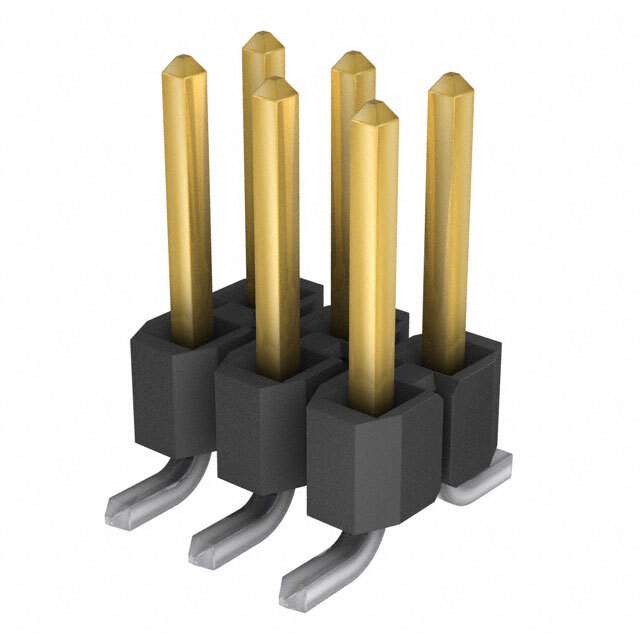

TSM-103-01-SM-DV-P-TR

Name: TSM-103-01-SM-DV-P-TR
Brand: Samtec Inc.
SKU: 937709
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSM-103-01-SM-DV-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 6POS 2.54MM
Datasheet	TSM-103-01-SM-DV-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	8 Weeks
Features	Connector Header Surface Mount 6 position 0.100" (2.54mm)
Manufacturer	Samtec Inc.
Series	TSM
Package	Reel - TR
Operating Temperature Range	-55°C ~ 125°C
Mounting	Surface Mount
Family Name	TSM-103
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SAM14796TR, TSM-103-01-SM-DV-P-TR-ND, SAM14796CT, SAM14796DKR
Quantity per package	150
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	937709-TSM-103-01-SM-DV-P-TR
Ultra Librarian 3D Model	Ultra Librarian TSM-103-01-SM-DV-P-TR CAD Model

Alternative Products

Description

The 937709-TSM-103-01-SM-DV-P-TR is a connector header surface mount part with six positions and a spacing of 0.100" (2.54mm).

Family: TSM-103
Operating Temperature: -55°C to 125°C
Popularity: 30 pct.
Supply and Demand Status: Balanced
Production Lead Time: 8 weeks (estimated)
Reel Quantity: 150
ECCN: EAR99
