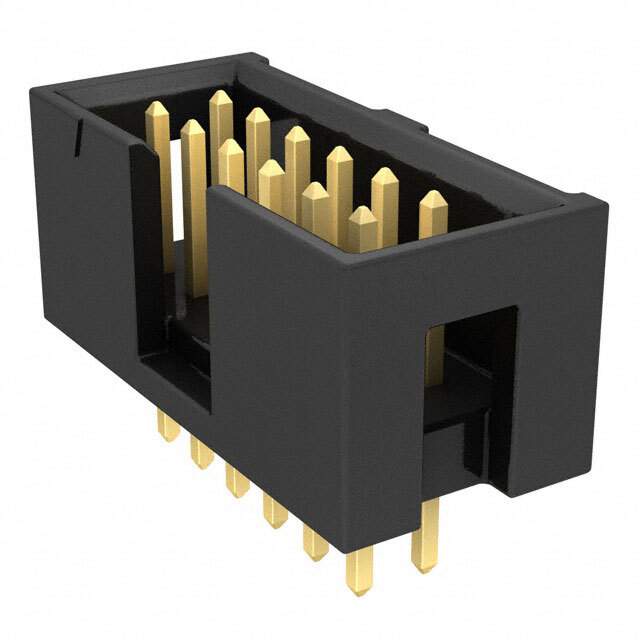

TST-106-01-G-D Real Image
Same model may have multiple batches, images only for reference.

TST-106-01-G-D

Part No TST-106-01-G-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 2.54MM  /  Connector Header Through Hole 12 position 0.100" (2.54mm)
Datasheet
TST-106-01-G-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Flex Stack, TST
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.250" (6.35mm)
Contact Length - Post 0.115" (2.92mm)
Overall Contact Length 0.480" (12.19mm)
Insulation Height 0.350" (8.89mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.4A per Contact
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number TST-106
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names TST-106-01-G-D-ND,SAM12292
Standard Package 1
Win Source Part Number 1011925-TST-106-01-G-D
Ultra Librarian 3D Model Ultra Librarian TST-106-01-G-D CAD Model

Description

The TST-106-01-G-D connector from Samtec Inc. is a high-quality connector that is designed to provide reliable performance and durability.

  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: gold
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 3.4A per contact
  • Package: bulk
  • Shrouding: shrouded - 4 wall
  • REACH: unaffected
