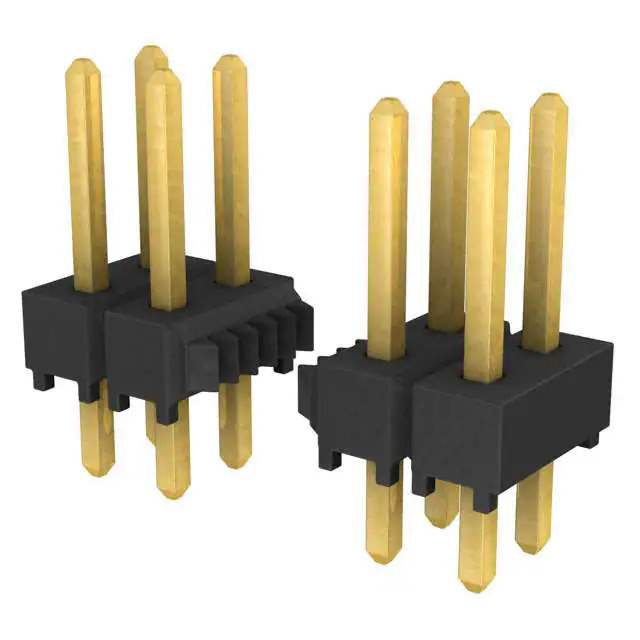

TSW-106-07-G-D

Name: TSW-106-07-G-D
Brand: Samtec Inc.
SKU: 901508
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSW-106-07-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 12POS 2.54MM / Connector Header Through Hole 12 position 0.100" (2.54mm)
Datasheet	TSW-106-07-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSW
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.100" (2.54mm)
Overall Contact Length	0.430" (10.92mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	TSW-106
Standard Package	1 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	901508-TSW-106-07-G-D
Ultra Librarian 3D Model	Ultra Librarian TSW-106-07-G-D CAD Model

Alternative Products

Description

The TSW series from Samtec Inc. offers a range of high-quality header connectors for various applications.

Series: TSW
Manufacturer: Samtec Inc.
Connector Type: Header Connector
Contact Type: Male Pins
Pitch: 0.100" (2.54mm)
Positions: 12
Mounting Type: Through-Hole
Contact Finish: Gold
Contact Material: Phosphor Bronze
Insulation Material: Polybutylene Terephthalate (PBT)
Flammability Rating: UL94 V-0
Shrouding: Unshrouded
Fastening Type: Push-Pull
Package: Bulk
Standard Package: 1 pc
Product Status: Active
