Same model may have multiple batches, images only for reference.

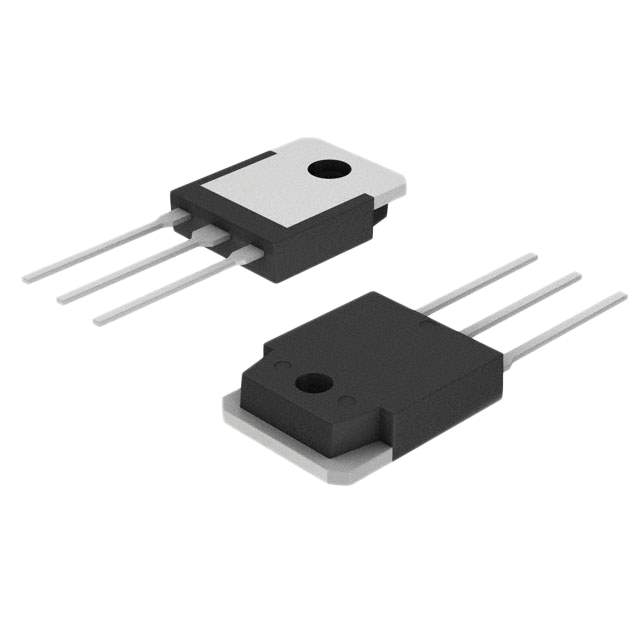

2SC4466 Real Image
Same model may have multiple batches, images only for reference.

2SC4466

Part No 2SC4466
Manufacturer Sanken
Catalog Transistors (BJT) - Single
Description TRANS NPN 80V 6A TO3P
Datasheet
2SC4466 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Status Active
Transistor Polarity NPN
Maximum Current Collector 6A
VCEO Maximum Collector-Emitter Breakdown Voltage 80V
Max Vce (sat) 1.5V @ 200mA, 2A
Collector Cut-off Current(Max) 10μA (ICBO)
Typical Gain (hFE) (Min) 50 @ 2A, 4V
Maximum Power Dissipation 60W
Frequency - Transition 20MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-3P
Win Source Part Number 1004424-2SC4466
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SC4466 CAD Model

Description

The Sanken 2SC4466 is an NPN transistor with a TO-3P case/package and a frequency transition of 20MHz.

  • Case/Package: TO-3P
  • Frequency Transition: 20MHz
  • Maximum Current Collector: 6A
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 80V
  • Max Vce (sat): 1.5V @ 200mA, 2A
  • Collector Cut-Off Current (Max): 10µA (ICBO)
  • Typical Gain (hFE) (Min): 50 @ 2A, 4V
  • Maximum Power Dissipation: 60W
  • Supply and Demand: Balanced
  • Temperature Range: 150°C (TJ)
