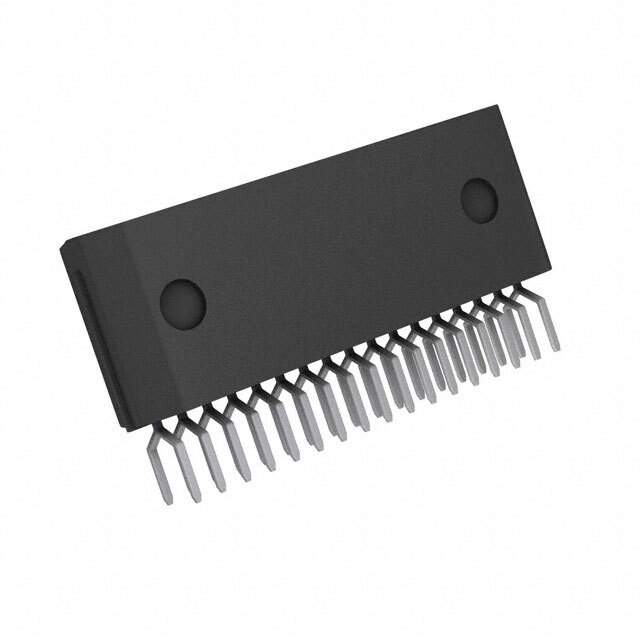

STA7130MPR Real Image
Same model may have multiple batches, images only for reference.

STA7130MPR

Part No STA7130MPR
Manufacturer Sanken
Catalog PMIC - Motor Drivers, Controllers
Description IC MTR DRV UNIPOLAR 10-44V 18ZIP  /  Unipolar Motor Driver Power MOSFET Parallel 18-ZIP
Datasheet
STA7130MPR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Sanken
Package Bulk
Motor Type - Stepper Unipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology Power MOSFET
Step Resolution 1, 1/2, 1/4, 1/8
Applications General Purpose
Current - Output 1A
Voltage - Supply 10V ~ 44V
Voltage - Load 10V ~ 44V
Temperature Range - Operating -20°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 18-SSIP Formed Leads
Supplier Device Package 18-ZIP
Base Product Number STA7130
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names STA7130MPR DK
Standard Package 1,785
Win Source Part Number 976693-STA7130MPR
Ultra Librarian 3D Model Ultra Librarian STA7130MPR CAD Model

Description

The STA7130MPR is an integrated circuit designed for motor drivers and controllers.

  • Type: Fully Integrated Driver
  • Features: Control and Power Stage Functions
  • Interface: Parallel
  • Output Configuration: Half-Bridge
  • Channels: 2
  • Compatible Motors: Brushed DC Motors and Unipolar Stepper Motors
  • Step Resolution: 1, 1/2, 1/4, and 1/8
  • Voltage Supply Range: 10V to 44V
  • Current Output: Up to 1A
  • Mounting Type: Through-Hole
  • Supplier Device Package: 18-ZIP
  • Operating Temperature Range: -20°C to 150°C
  • Application: General-Purpose
  • Standard Package: 1,785
