Same model may have multiple batches, images only for reference.

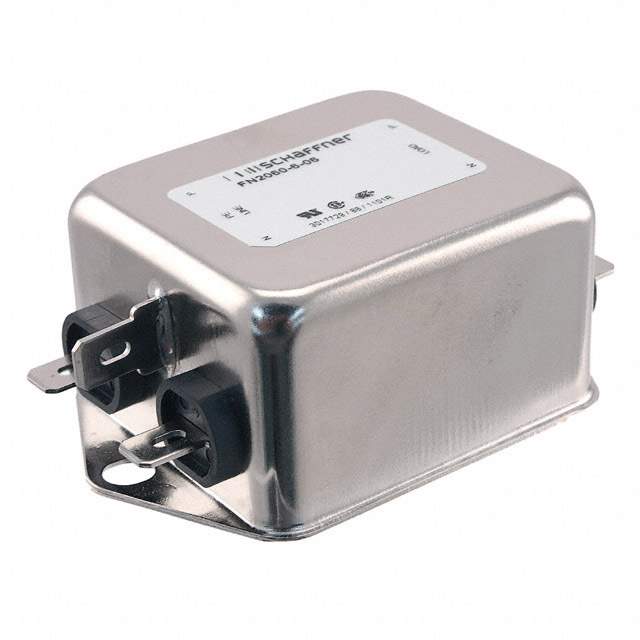

FN2060-6-06 Real Image
Same model may have multiple batches, images only for reference.

FN2060-6-06

Part No FN2060-6-06
Manufacturer Schaffner EMC Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VAC 6A CHASS MNT  /  Single Phase EMC/EMI Line Filter 6 A 250VAC DC ~ 400Hz Two Stage Quick Connect
Datasheet
FN2060-6-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Schaffner EMC Inc.
Series FN 2060
Package Tray
Filter Type Single Phase
Configuration Two Stage
Voltage - Rated AC 250V
Current 6 A
Frequency - Operating DC ~ 400Hz
Applications General Purpose
Approval Agency CE, CSA, ENEC, UR
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Inductance 970µH
Base Product Number FN2060
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 291-696,800616,FN2060 - 6 -06,FN2060606,817-1289
Standard Package 50
Win Source Part Number 1199825-FN2060-6-06
Ultra Librarian 3D Model Ultra Librarian FN2060-6-06 CAD Model

Description

The FN 2060 series power line filter module from Schaffner EMC Inc. is a two-stage, single-phase filter designed for general-purpose applications.

  • Filter Type: Power Line Filter Module
  • Number of Stages: Two Stage
  • Phase: Single Phase
  • Current Rating: 6A
  • Voltage Rating: 250V AC
  • Frequency Range: DC to 400Hz
  • Inductance: 970μH
  • Termination Style: Quick Connect
  • Mounting Type: Chassis Mount
  • Operating Temperature: -25°C to 100°C
  • Alternative Part Numbers: 800616, FN 2060-6-06, FN-2060-6-06, FN2060-6-06
  • Approvals: CE, CSA, ENEC, UR
