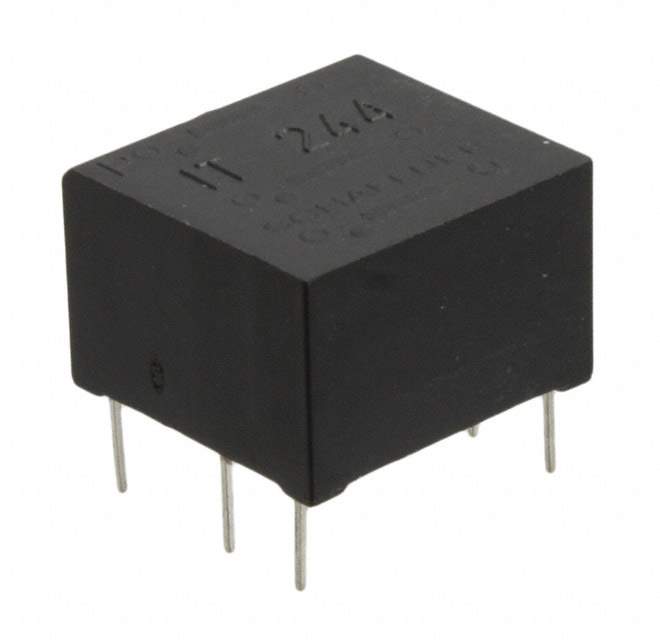

IT243 Real Image
Same model may have multiple batches, images only for reference.

IT243

Part No IT243
Manufacturer Schaffner EMC Inc.
Catalog Pulse Transformers
Description XFRMR PULSE 1:1:1 DL 2.5MH .1A / 2.5mH Data/Voice Coupling Pulse Transformer 1:1:1 Through Hole
Datasheet
IT243 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Schaffner EMC Inc.
Series IT
Package Tray
Transformer Type Data/Voice Coupling
Inductance 2.5mH
Mounting Type Through Hole
Dimension 0.693" L x 0.657" W (17.60mm x 16.70mm)
Height - Seated (Max) 0.445" (11.30mm)
Temperature Range - Operating -25°C ~ 70°C
Weight 0.2 oz (5.7 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 22-473,817-1510,IT 243,800063
Standard Package 200
Win Source Part Number 1223212-IT243
Ultra Librarian 3D Model Ultra Librarian IT243 CAD Model

Description

This is a pulse transformer with the Win Source Part Number 1223212-IT243. This transformer belongs to the IT series and comes in a tray package.

  • Data/Voice Coupling Transformer: Yes
  • Inductance: 2.5mH
  • Height When Seated: 0.445" (11.30mm)
  • Standard Package Quantity: 200
  • Weight: 0.2 oz (5.7 g)
  • Mounting Type: Through-Hole
  • Operating Temperature Range: -25°C to 70°C
  • Dimension: 0.693" L x 0.657" W (17.60mm x 16.70mm)
  • Alternative Parts (Cross-Reference): 800063, IT 243
  • MSL Level: Not Applicable
  • ET (Volt-Time): Not Provided
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.31.2000
  • Manufacturer: Schaffner EMC Inc.
  • Other Names: 22-473, 817-1510, IT 243, 800063
