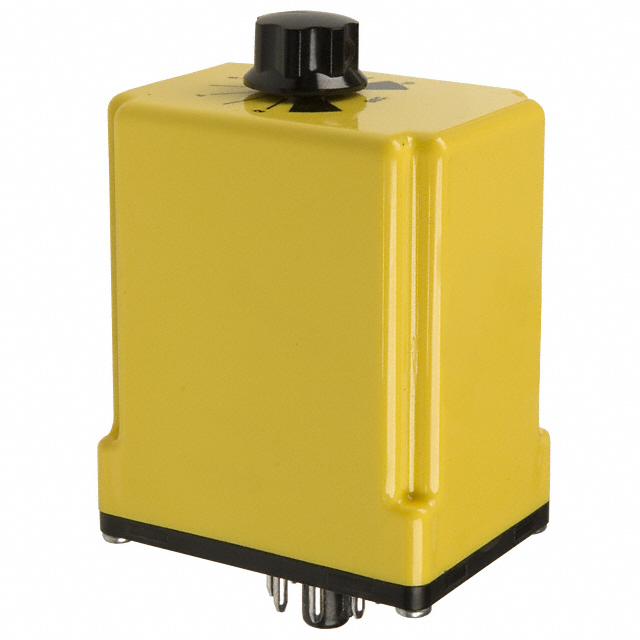

Same model may have multiple batches, images only for reference.
9050JCK54V20 Schneider Electric – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

9050JCK54V20

Part No 9050JCK54V20
Manufacturer Schneider Electric
Catalog Time Delay Relays
Description RELAY TIME DELAY 120SEC 10A 240V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Mounting Type Socketable
Relay Type Mechanical Relay
Function Repeat Cycle
Circuit DPDT (2 Form C)
Delay Time 1.2 Sec ~ 120 Sec
Contact Rating @ Voltage 10A @ 240VAC
Voltage - Supply 120VAC
Termination Style Plug In
Timing Adjustment Method Hand Dial
Timing Initiate Method Input Voltage
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1550924-9050JCK54V20
Ultra Librarian 3D Model Ultra Librarian 9050JCK54V20 CAD Model
