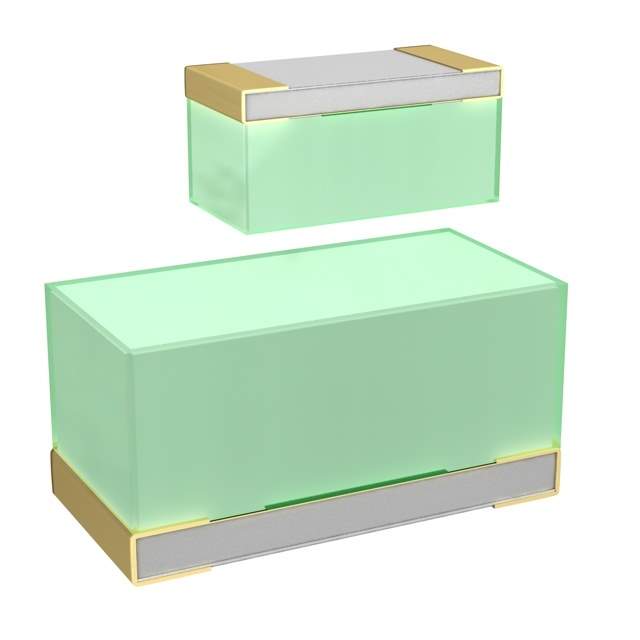

3413.0009.22 Real Image
Same model may have multiple batches, images only for reference.

3413.0009.22

Part No 3413.0009.22
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 200MA 125VAC 63VDC / 200 mA 125 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
3413.0009.22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series USFF 1206
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 200 mA
Voltage Rating - AC 125 V
Voltage Rating - DC 63 V
Response Time Fast Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 10A AC, 100A DC
Melting I2t 0.0029
Approval Agency CE, cURus
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.126" L x 0.063" W x 0.063" H (3.20mm x 1.60mm x 1.60mm)
DC Cold Resistance 0.365 Ohms
Base Product Number 3413.0009
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 486-1652-2,3413.0009.22-ND,486-1652-1,486-1652-6,3413000922
Standard Package 1,000
Win Source Part Number 1034720-3413.0009.22
Ultra Librarian 3D Model Ultra Librarian 3413.0009.22 CAD Model

Description

The Schurter Inc. USFF 1206 series fast blow board mount fuse is a reliable circuit protection device that can handle AC voltage ratings of 125V and DC voltage ratings of 63V.

  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 63V
  • Breaking Capacity (AC): 10A AC @ Rated Voltage
  • Breaking Capacity (DC): 100A DC @ Rated Voltage
  • Melting I2t: 0.0029
  • Package: Tape and Reel
  • Package/Case Size: 1206 (3216 Metric)
  • Operating Temperature Range: -55°C to 90°C
  • Dimensions: 0.126" L x 0.063" W x 0.063" H (3.20mm x 1.60mm x 1.60mm)
  • Fuse Type: Fast-Blow
  • Manufacturer: Schurter Inc.
