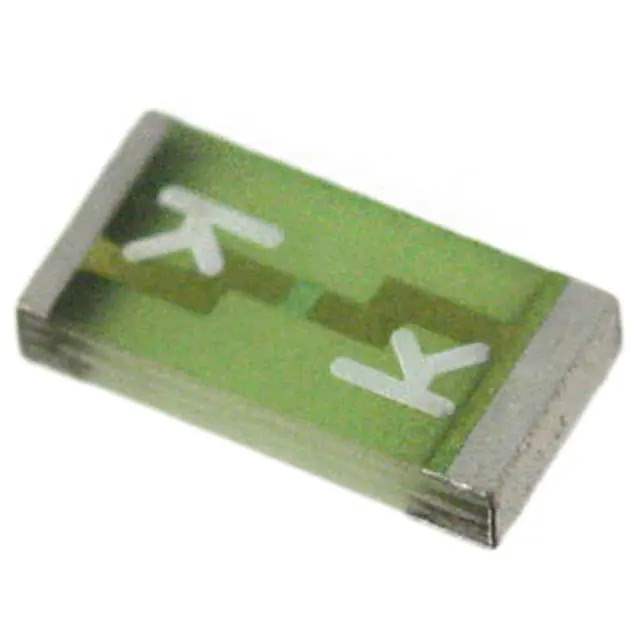

Same model may have multiple batches, images only for reference.

3413.0223.22

Name: 3413.0223.22
Brand: Schurter Inc.
SKU: 855762
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	3413.0223.22
Manufacturer	Schurter Inc.
Catalog	Fuses
Description	FUSE BRD MNT 5A 32VAC 63VDC 1206 / 5 A 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet	3413.0223.22 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Fuses
Mfr	SCHURTER Inc.
Series	USI 1206
Package	Tape & Reel
Product Status	Active
Mounting Type	Surface Mount
Fuse Type	Board Mount (Cartridge Style Excluded)
Current Rating (Amps)	5 A
Voltage Rating - AC	32 V
Voltage Rating - DC	63 V
Response Time	Fast Blow
Package / Case	1206 (3216 Metric)
Breaking Capacity @ Rated Voltage	63A
Melting I2t	4.65
Approval Agency	cURus, VDE
Temperature Range - Operating	-55°C ~ 90°C
Size / Dimension	0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm)
DC Cold Resistance	0.0096 Ohms
Base Product Number	3413.0223
Standard Package	1,000 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.10.0040
Win Source Part Number	855762-3413.0223.22
Ultra Librarian 3D Model	Ultra Librarian 3413.0223.22 CAD Model

Alternative Products

Description

The SCHURTER Inc. USI 1206 series fuse is a board mount fuse designed for circuit protection.

Series: USI 1206
Voltage Rating: 32V AC / 63V DC
Current Rating: 5A
Response Time: Fast Blow
Breaking Capacity: 63A @ rated voltage
Size: 0.126" length x 0.063" width x 0.024" height (3.20mm x 1.60mm x 0.60mm)
Mounting: Surface Mount
Package: 1206 (3216 Metric)
Operating Temperature: -55°C to 90°C
Packaging: Tape & Reel
Pieces per Package: 1,000
Approvals: cURus and VDE
