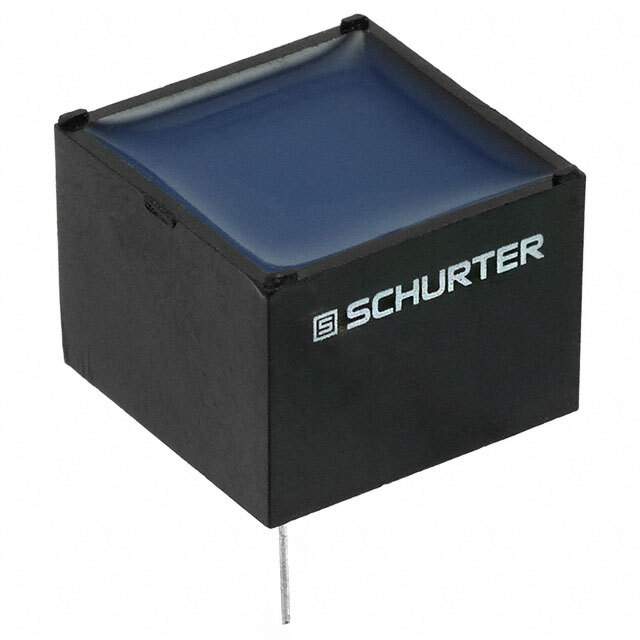

DS1-20-0001 Real Image
Same model may have multiple batches, images only for reference.

DS1-20-0001

Part No DS1-20-0001
Manufacturer Schurter Inc.
Catalog Common Mode Chokes
Description CMC 630MA 2LN TH / 2 Line Common Mode Choke Through Hole 630mA DCR 700mOhm
Datasheet
DS1-20-0001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr SCHURTER Inc.
Series DS
Package Bulk
Number of Lines 2
Current Rating (Max) 630mA
DC Resistance (DCR) (Max) 700mOhm
Voltage Rating - DC 600V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Dimension 0.787" L x 0.787" W (20.00mm x 20.00mm)
Package / Case Radial
Base Product Number DS1-20
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names DS1-20-0.63-1000/A,DS1-20-0001-ND,486-3149
Standard Package 75
Win Source Part Number 1056013-DS1-20-0001
Ultra Librarian 3D Model Ultra Librarian DS1-20-0001 CAD Model

Description

The DS1-20-0.63-1000/A is a common mode choke designed to provide noise suppression in electronic circuits.

  • Series: DS series
  • Voltage Rating: 600V DC
  • Maximum Current Rating: 630mA
  • DC Resistance: 700mOhm
  • Mounting Type: Through Radial
