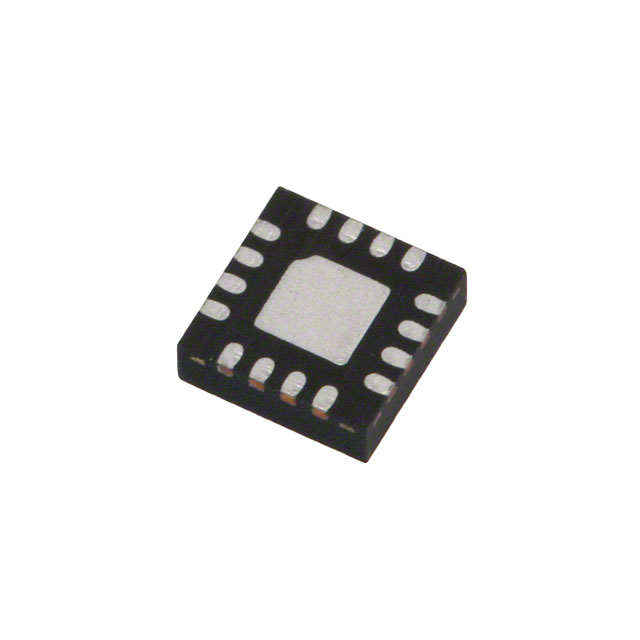

Same model may have multiple batches, images only for reference.
ECLAMP2342N.TCT Semtech Corporation
Same model may have multiple batches, images only for reference.

ECLAMP2342N.TCT

Part No ECLAMP2342N.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/12PF SMD
Datasheet
ECLAMP2342N.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 8
Attenuation Value 30dB @ 1GHz to 2.5GHz
Resistance - Channel (Ohms) 100
Values R = 100 Ohms, C = 12pF (Total)
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height 0.039" (1.00mm)
Win Source Part Number 015149-ECLAMP2342N.TCT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECLAMP2342N.TCT CAD Model

Description

Product Overview

The ECLAMP2342N.TCT offers exceptional transient voltage suppression, making it perfect for protecting complex electronics that require robust ESD protection and voltage regulation.

Features and Benefits

  • Advanced Voltage Clamping: Quickly clamps voltage surges to prevent damage.
  • Slim Profile: Designed to accommodate constrained environments.
  • Enhanced Reliability: Durability ensures long-term performance in demanding conditions.
  • Low Leakage Current: Preserves battery life in portable devices.

Applications

  • Industrial Control Systems
  • Telecommunications Equipment
  • High-Frequency Data Interfaces
  • Consumer Electronics

The ECLAMP2342N.TCT is suited to enhance performance and improve the longevity of various electronic systems.
