Same model may have multiple batches, images only for reference.

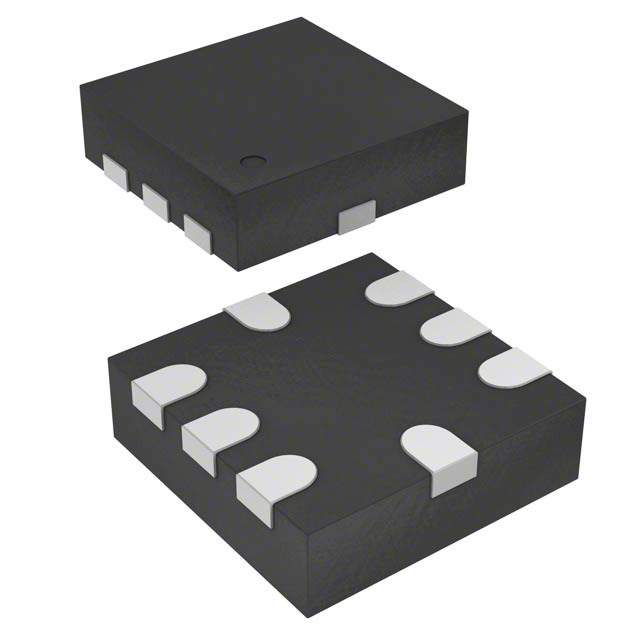

SC560CULTRT Real Image
Same model may have multiple batches, images only for reference.

SC560CULTRT

Part No SC560CULTRT
Manufacturer Semtech Corporation
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 0.3A 8MLPQ
Datasheet
SC560CULTRT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Output Type Adjustable
Number of Regulators 2
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 1.2V
Maximum Output Voltage 5V
Dropout Voltage-Max 0.1V @ 200mA (Typ), 0.1V @ 200mA (Typ)
Output Current 300mA, 300mA
Operating Supply Current 100μA
PSRR 65dB to 40dB (1kHz)
Control Features Enable, Power Good
Protection Features Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Adjustable
Output Voltage 1.2 V to 5 V
Voltage - Dropout (Typical) 0.1V @ 200mA
Mounting SMD (SMT)
Case / Package 8-MLPQ-UT (1.5x1.5)
Win Source Part Number 107490-SC560CULTRT
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SC560CULTRT CAD Model

Description

The 107490-SC560CULTRT is an integrated circuit manufactured by Semtech Corporation.

  • Topology: Positive adjustable regulator topology
  • Regulators: Two regulators
  • Output Type: Adjustable
  • Control Features: Enable and power good
  • Output Voltage: 1.2 V to 5 V
  • Maximum Input Voltage: 5.5V
  • Temperature Range: -40°C to 85°C
  • Package: 8-MLPQ-UT (1.5x1.5) technology
