Same model may have multiple batches, images only for reference.

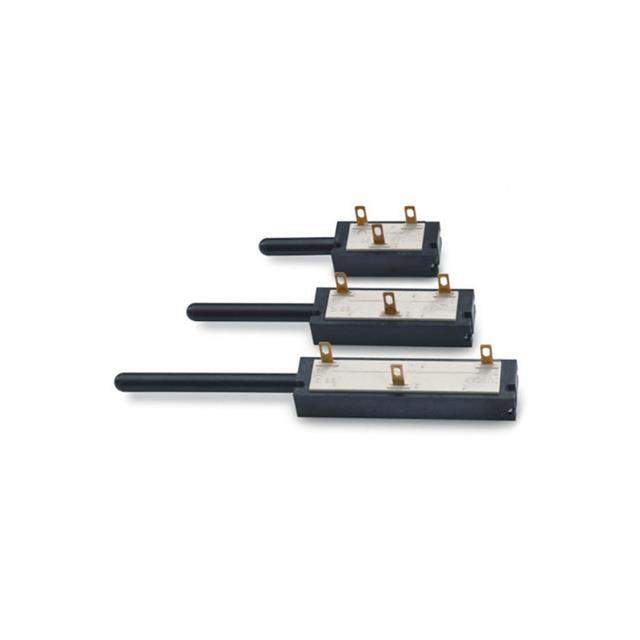

9610R3.4KL2.0 Real Image
Same model may have multiple batches, images only for reference.

9610R3.4KL2.0

Part No 9610R3.4KL2.0
Manufacturer Sensata-BEI Sensors
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR LINEAR 25.4MM SOLDER LUG / Resistive Sensor Linear Position Round Shaft Solder Lug
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Position Sensors - Angle, Linear Position Measuring
Mfr Sensata-BEI Sensors
Series 9600
Package Bulk
For Measuring Linear Position
Technology Resistive
Linear Range 0 ~ 25.40mm (0 ~ 1.00")
Output Resistive
Actuator Type Round Shaft
Linearity ±0.5%
Resistance 3.4 kOhms
Resistance Tolerance ±25%
Mounting Type Chassis Mount
Termination Style Solder Lug
Temperature Range - Operating -40°C ~ 135°C
Package / Case Box with Solder Lugs
Base Product Number 9610R3.4
Standard Package 25
RoHS Status Not applicable
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 1348017-9610R3.4KL2.0
Ultra Librarian 3D Model Ultra Librarian 9610R3.4KL2.0 CAD Model

Description

The Sensata-BEI Sensors 9600 series is a linear position sensor that uses resistive technology to measure linear position.

  • Linear Range: 0 ~ 25.40mm (0 ~ 1.00")
  • Resistance: 3.4 kOhms
  • Resistance Tolerance: ±25%
  • Linearity: ±0.5%
  • Actuator Type: Round Shaft
  • Mounting Type: Chassis Mount
