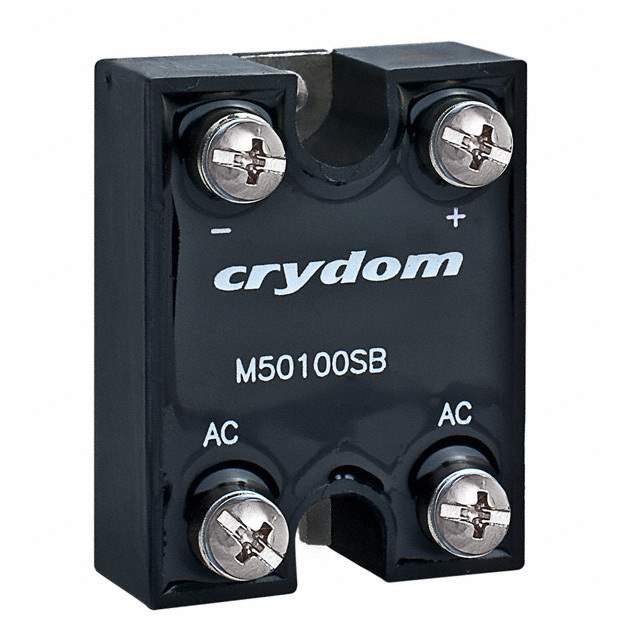

Same model may have multiple batches, images only for reference.

M50100SB1000

Name: M50100SB1000
Brand: Sensata-Crydom
SKU: 1181192
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M50100SB1000
Manufacturer	Sensata-Crydom
Catalog	Bridge Rectifiers
Description	BRIDGE RECT 1P 1KV 100A MODULE / Bridge Rectifier Single Phase Standard 1 kV Chassis Mount Module
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr	Sensata-Crydom
Package	Bulk
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1 kV
Current - Average Rectified (Io)	100 A
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 100 A
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
Base Product Number	M50100
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	M50100SB1000-ND,CC2574,2266-M50100SB1000
Standard Package	10
Win Source Part Number	1181192-M50100SB1000
Ultra Librarian 3D Model	Ultra Librarian M50100SB1000 CAD Model

Alternative Products

Description

The M50100SB1000 from Sensata-Crydom is a bridge rectifier diode belonging to the M50100 series.

Series: M50100
Package: Bulk
Standard Package: 10
Diode Type: Single Phase
Technology: Standard
Current Average Rectified: 100 A
Voltage Forward (Vf): 1.2 V @ 100 A
Voltage Peak Reverse: 1 kV
Mounting Type: Chassis Mount
Package/Case: Module
Supplier Device Package: Module
Operating Temperature: -40°C ~ 125°C (TJ)
