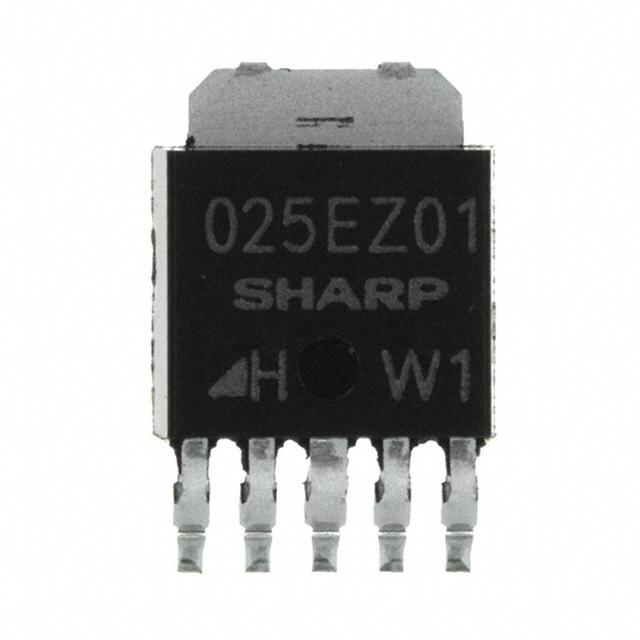

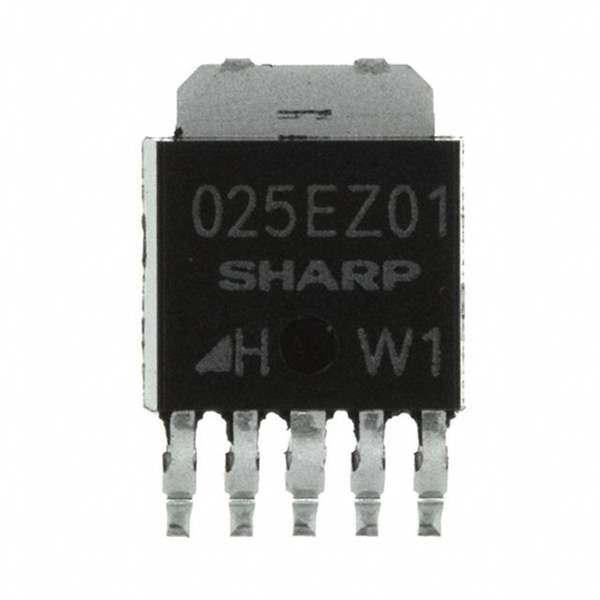

PQ025EZ01ZPH Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ025EZ01ZPH

Part No PQ025EZ01ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 2.5V 1A SC63
Datasheet
PQ025EZ01ZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 2.5V
Output Current 1A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 2.5V
Voltage - Dropout (Typical) 0.2V @ 500mA
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 004979-PQ025EZ01ZPH
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PQ025EZ01ZPH CAD Model

Description

The Sharp Microelectronics PQ025EZ01ZPH is a positive fixed regulator from Sharp Microelectronics.

  • Voltage Dropout: 0.2V @ 500mA
  • Output Current: 1A @ 2.5V
  • Supply and Demand Status: Sufficient
  • Status: Obsolete (EOL)
  • Operating Temperature Range: -40°C to 85°C
