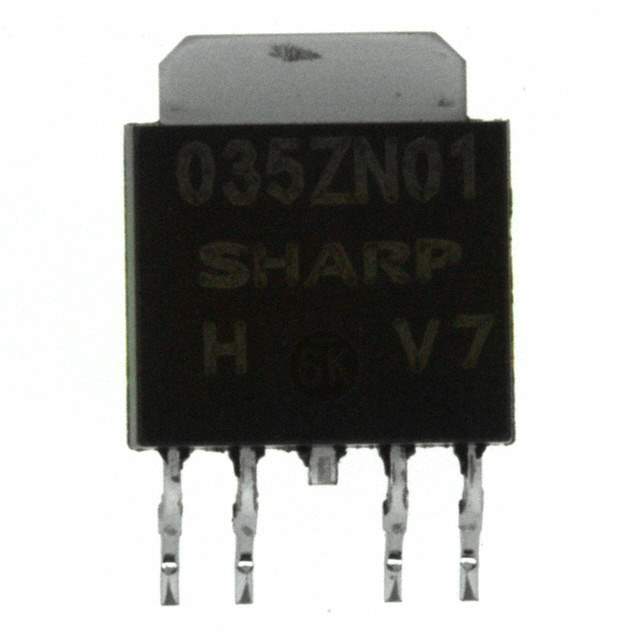

PQ035ZN01ZPH Real Image
Same model may have multiple batches, images only for reference.

PQ035ZN01ZPH

Part No PQ035ZN01ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 1A SC63
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 0.8V
Maximum Output Voltage 3.5V
Output Current 1A
PSRR 65dB to 53dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Adjustable
Output Voltage 0.8 V to 3.5 V
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 026840-PQ035ZN01ZPH
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian PQ035ZN01ZPH CAD Model

Description

The Sharp Microelectronics regulator is a high-quality electronic component designed to offer superior performance.

  • Popularity: Medium
  • Regulator Type: Positive Adjustable Regulator
  • Supply and Demand Status: Balance
  • Maximum Input Voltage: 5.5V
  • Nominal Output Voltage: 0.8V
