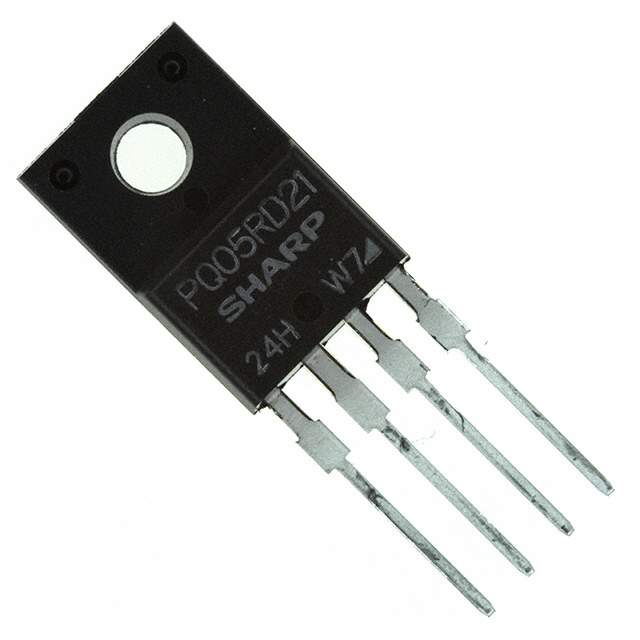

PQ05RD21J00H Real Image
Same model may have multiple batches, images only for reference.

PQ05RD21J00H

Part No PQ05RD21J00H
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 2A TO220-4
Datasheet
PQ05RD21J00H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 20V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 0.5V @ 2A
Output Current 2A
Operating Supply Current 10mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 5V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 045904-PQ05RD21J00H
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian PQ05RD21J00H CAD Model

Description

The PQ05RD21J00H is a positive fixed regulator that is manufactured by Sharp Microelectronics.

  • Popularity: Medium
  • Supply and Demand: Currently in balance
  • Output Voltage: 5V
  • Output Current: 2A
  • Maximum Input Voltage: 20V
  • Nominal Output Voltage (min/fixed): 5V
  • Dropout Voltage-Max: 0.5V @ 2A
  • PSRR: 55dB (120Hz)
  • Note: This part is a critical component that is used in a variety of electronic devices.
