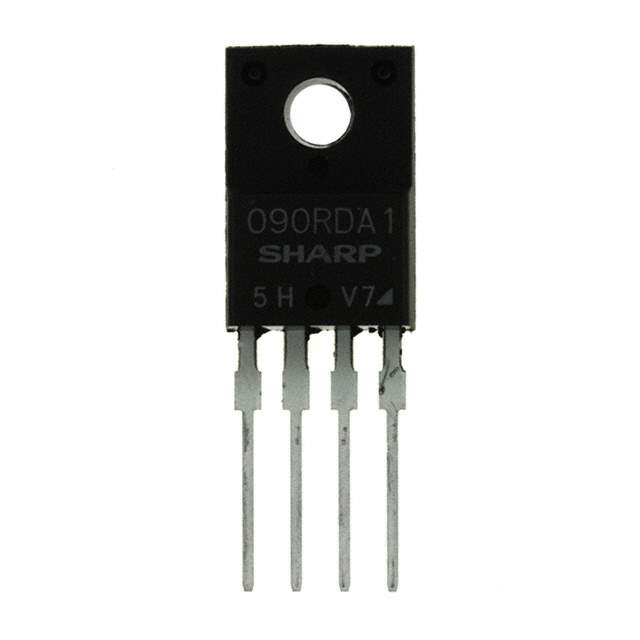

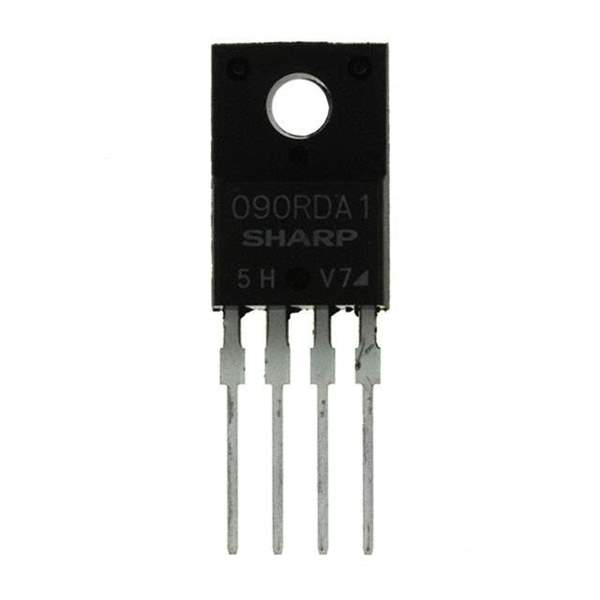

PQ090RDA1SZH Real Image1 PQ090RDA1SZH Real Image2
Same model may have multiple batches, images only for reference.
PQ090RDA1SZH Real Image1 PQ090RDA1SZH Real Image2
PQ090RDA1SZH Real Image1 PQ090RDA1SZH Real Image2
Same model may have multiple batches, images only for reference.

PQ090RDA1SZH

Part No PQ090RDA1SZH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 9V 1A TO220-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 24V
Nominal Output Voltage (Min/Fixed) 9V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 8mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -30°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 9V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 061997-PQ090RDA1SZH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ090RDA1SZH CAD Model

Description

It is categorized as an integrated circuit and has an obsolete (EOL) status. This component is designed by Sharp Microelectronics and sold by Win Source.

  • Part Number: 061997-PQ090RDA1SZH
  • Suitable for: Various electronic applications
  • Topology: Positive fixed regulator
  • Regulator Count: One
  • Output Type: Fixed
  • Control Features: Enable
  • Maximum Input Voltage: 24V
  • Nominal Output Voltage: 9V
  • Dropout Voltage-Max: 0.5V @ 500mA
  • Protection Features: Over current and over temperature
