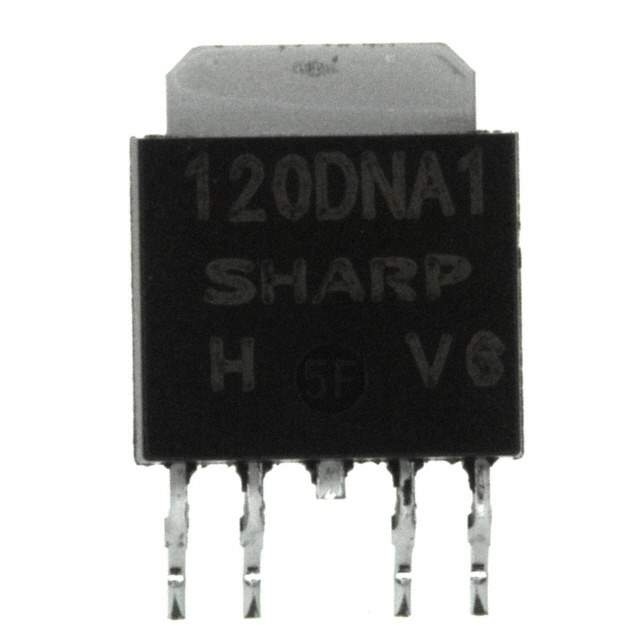

PQ120DNA1ZPH Real Image
Same model may have multiple batches, images only for reference.

PQ120DNA1ZPH

Part No PQ120DNA1ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 12V 1A SC63
Datasheet
PQ120DNA1ZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 24V
Nominal Output Voltage (Min/Fixed) 12V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 8mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 12V
Voltage - Dropout (Typical) 0.2V @ 500mA
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 099649-PQ120DNA1ZPH
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PQ120DNA1ZPH CAD Model

Description

The Sharp Microelectronics PQ120DNA1ZPH is an integrated circuit with a positive fixed regulator topology.

  • Voltage Dropout: 0.2V @ 500mA
  • Maximum Input Voltage: 24V
  • Nominal Output Voltage: 12V
  • Dropout Voltage-Max: 0.5V @ 500mA
  • Supply and Demand Status: Sufficient
  • Packaging: Reel - TR
