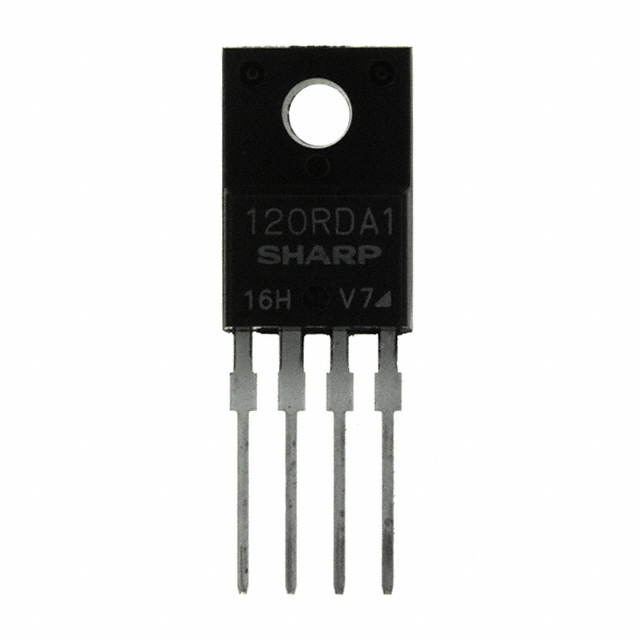

PQ120RDA1 Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ120RDA1

Part No PQ120RDA1
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 12V 1A TO220-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 24V
Nominal Output Voltage (Min/Fixed) 12V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 8mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -30°C to 85°C
Regulator Topology Positive Fixed
Output Voltage 12V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 062000-PQ120RDA1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PQ120RDA1 CAD Model

Description

The Sharp Microelectronics is an integrated circuit with a positive fixed regulator topology.

  • Output Type: Fixed
  • Output Voltage: 12V
  • Output Current: 1A
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
  • Protection Features: Over current and over temperature
  • Suitable for: Applications requiring a fixed output voltage.
