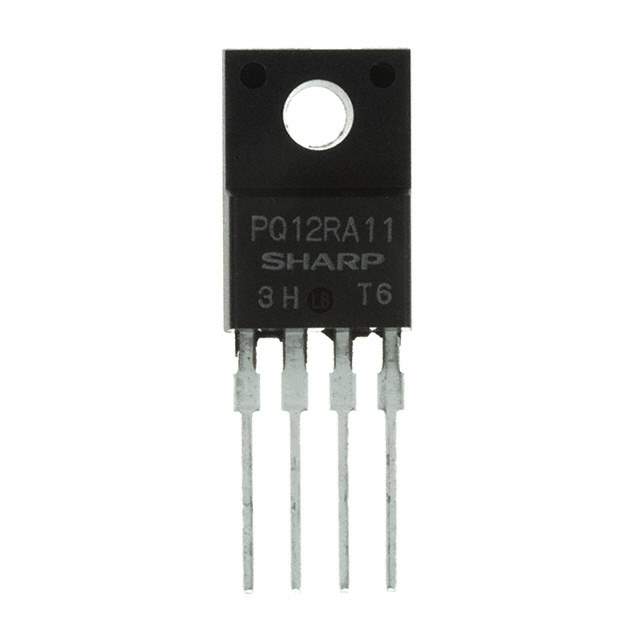

The PQ12RA11 is a low-dropout (LDO) voltage regulator manufactured by Sharp Microelectronics. It's designed to provide a stable and regulated 12V output voltage from an input voltage range of up to 35V. This regulator is commonly used in various electronic devices to supply a clean and consistent power source for sensitive components.

Applications:

• Power Supplies: Regulates the output voltage in power supplies for various electronic devices.
• Industrial Equipment: Used in industrial control systems and automation equipment.
• Consumer Electronics: Employed in televisions, audio equipment, and other consumer devices.
• Automotive Electronics: Found in automotive control systems and power distribution networks.

Features:

• Fixed 12V Output: Provides a stable and regulated 12V output voltage.
• Low Dropout Voltage: Operates with a small difference between the input and output voltage.
• Overcurrent Protection: Protects the device and connected components from excessive current.
• Overtemperature Protection: Shuts down the device in case of excessive temperature to prevent damage.
• TO-220 Package: Easy to mount and provides good thermal dissipation.

Benefits:

• Stable Output Voltage: Ensures consistent power supply for sensitive electronic components.
• Low Noise: Minimizes noise and ripple in the output voltage, improving performance.
• Robust Protection: Protects the device and connected components from damage.
• Easy to Use: Simple design and easy to mount.
• Reliable Performance: Provides stable and consistent performance in demanding applications.

The PQ12RA11 is a reliable and easy-to-use LDO voltage regulator. Its fixed 12V output and robust protection features make it an ideal choice for a wide range of applications. The low dropout voltage ensures efficient operation, and the TO-220 package allows for easy mounting and good thermal dissipation. The device's stable output voltage and low noise characteristics make it suitable for powering sensitive electronic components.
