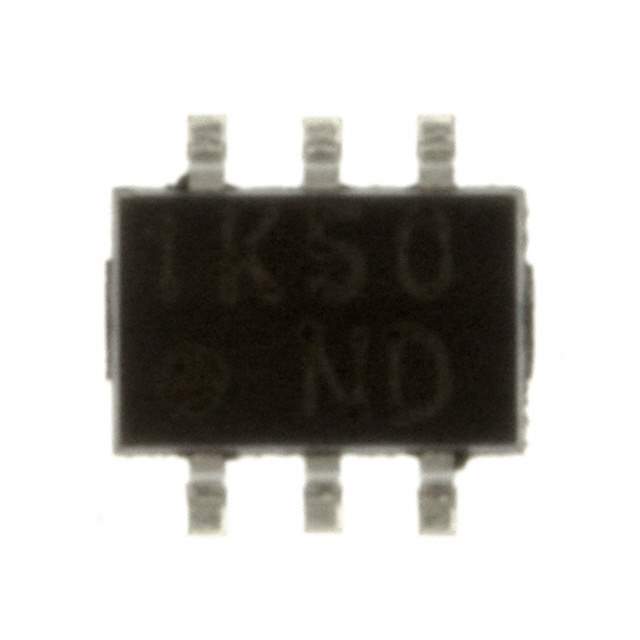

PQ1K503M2ZP Real Image
Same model may have multiple batches, images only for reference.

PQ1K503M2ZP

Part No PQ1K503M2ZP
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 0.3A SOT23L-6
Datasheet
PQ1K503M2ZP Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 9V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 0.7V @ 300mA
Output Current 300mA
Operating Supply Current 500μA
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -30°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 5V
Voltage - Dropout (Typical) 0.4V @ 300mA
Mounting SMD (SMT)
Case / Package SOT-23L-6
Win Source Part Number 026843-PQ1K503M2ZP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ1K503M2ZP CAD Model

Description

The Sharp Microelectronics PQ1K503M2ZP is a positive fixed voltage regulator with a dropout voltage of 0.4V @ 300mA output current.

  • Package: SOT-23L-6
  • Operating Temperature: -30°C to 80°C
  • Features: overcurrent and overtemperature protection
  • Maximum Input Voltage: 9V
  • Output Voltage: fixed @ 5V
  • Feature: enable control feature
  • Status: obsolete (EOL)
