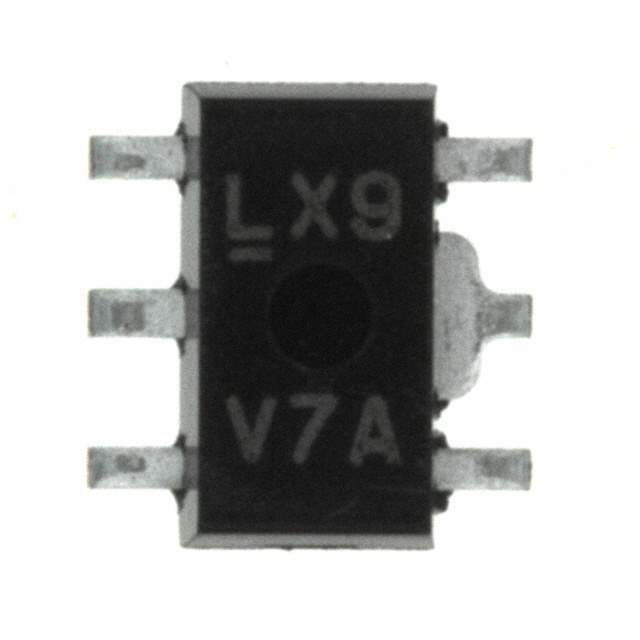

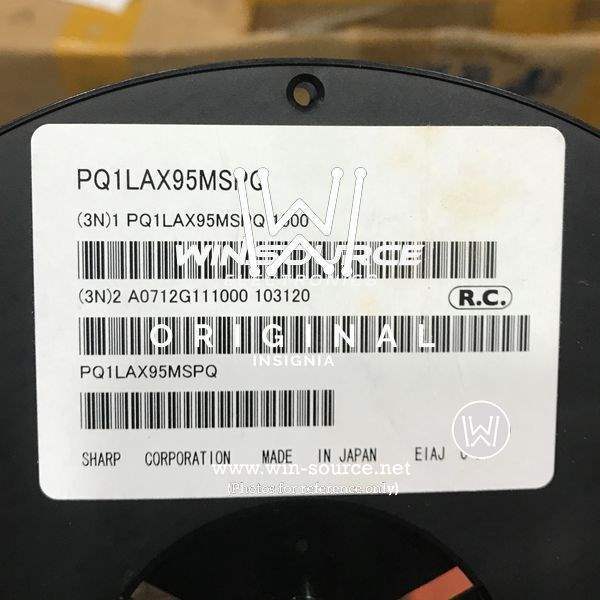

PQ1LAX95MSPQ Real Image PQ1LAX95MSPQ label picture
Same model may have multiple batches, images only for reference.
PQ1LAX95MSPQ Real Image PQ1LAX95MSPQ label picture
PQ1LAX95MSPQ Real Image PQ1LAX95MSPQ label picture
Same model may have multiple batches, images only for reference.

PQ1LAX95MSPQ

Part No PQ1LAX95MSPQ
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 0.5A SOT89
Datasheet
PQ1LAX95MSPQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 15V
Nominal Output Voltage (Min/Fixed) 1.24V
Maximum Output Voltage 9V
Dropout Voltage-Max 0.7V @ 300mA
Output Current 500mA
Operating Supply Current 700μA
PSRR 50dB (400Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Regulator Topology Positive Adjustable
Output Voltage 1.24 V to 9 V
Mounting SMD (SMT)
Case / Package SOT-89
Win Source Part Number 100656-PQ1LAX95MSPQ
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PQ1LAX95MSPQ CAD Model

Description

The Sharp Microelectronics PQ1LAX95MSPQ is an adjustable positive regulator with a SOT-89 case/package.

  • Case/Package: SOT-89
  • Maximum Input Voltage: 15V
  • Nominal Output Voltage: 1.24V
  • Dropout Voltage: 0.7V @ 300mA
  • Operating Supply Current: 700μA
  • Output Current: 500mA
  • Output Voltage Range: 1.24V to 9V
  • Protection Features: Over Current and Over Temperature
  • Temperature Range: -40°C to 85°C
  • PSRR: 50dB (400Hz)
  • Package: Reel
  • Status: Obsolete (EOL)
