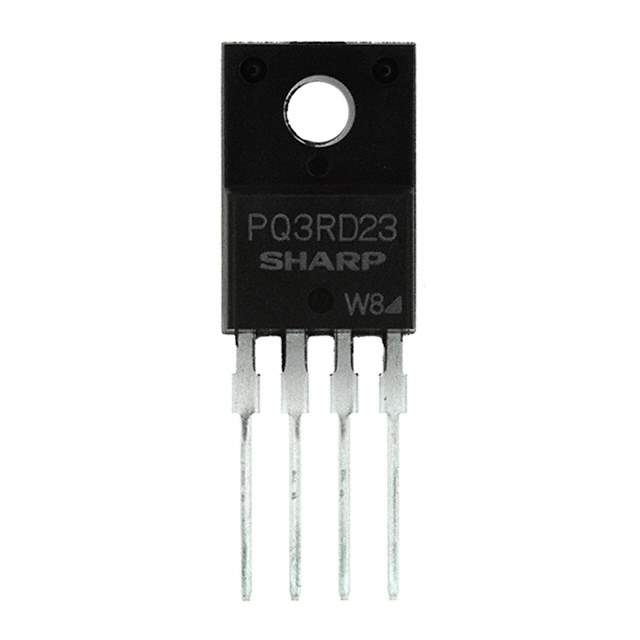

PQ3RD23J000H Real Image
Same model may have multiple batches, images only for reference.

PQ3RD23J000H

Part No PQ3RD23J000H
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 2A TO220-4
Datasheet
PQ3RD23J000H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 20V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 0.5V @ 2A
Output Current 2A
Operating Supply Current 10mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 062029-PQ3RD23J000H
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian PQ3RD23J000H CAD Model

Description

The PQ3RD23J000H is an obsolete(EOL) electronic component manufactured by Sharp Microelectronics. It is a positive fixed regulator topology with a fixed output type. The output voltage is 3.3V and the output current is 2A. The product is packaged in a TO-220-4 and has a medium popularity in the market.
