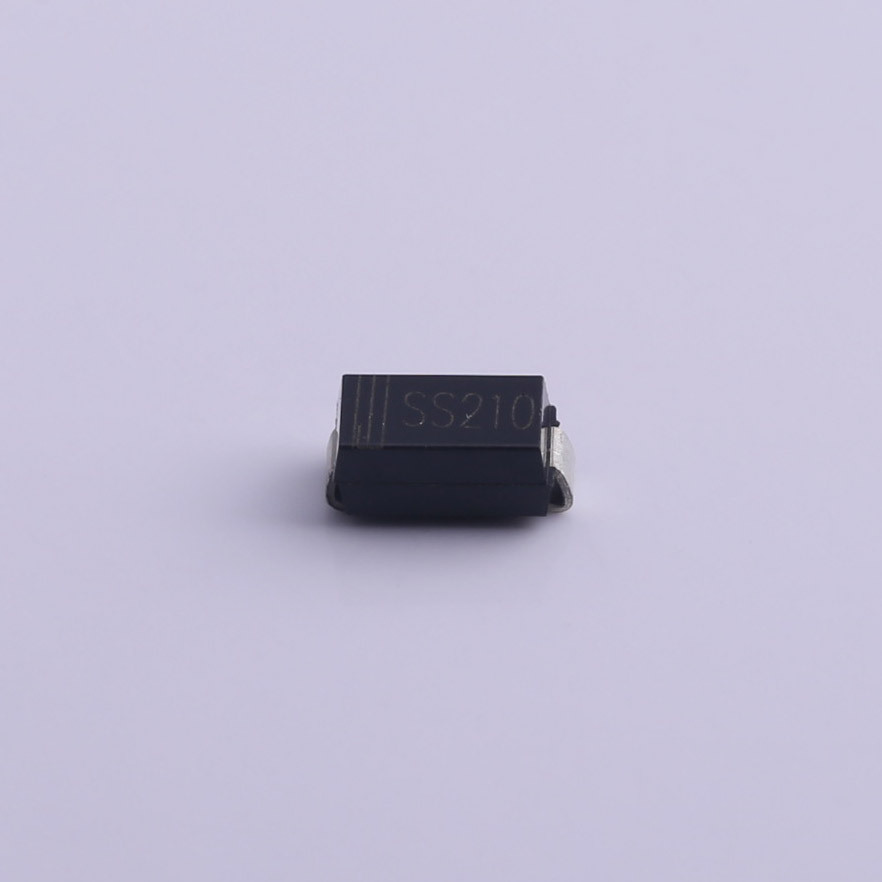

Same model may have multiple batches, images only for reference.

SS210

Name: SS210
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1329837
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SS210
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	Schottky Diodes
Description	100V 850mV@2A 2A SMA(DO-214AC)
Datasheet	SS210 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1329837-SS210
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	850mV @ 2A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	100µA @ 100V
Grade	-
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMB)
Operating Temperature - Junction	-55°C ~ 150°C
Package	Cut Tape (CT)
Current - Reverse Leakage @ Vr	300µA @ 100V
Capacitance @ Vr, F	80pF @ 4V, 1MHz
Package / Case	DO-214AC, SMA
Supplier Device Package	SMA
Operating Temperature - Junction	-55°C ~ 125°C
Capacitance @ Vr, F	130pF @ 4V, 1MHz
Supplier Device Package	DO-214AC (SMA)
Operating Temperature - Junction	-65°C ~ 150°C
Ultra Librarian 3D Model	Ultra Librarian SS210 CAD Model
