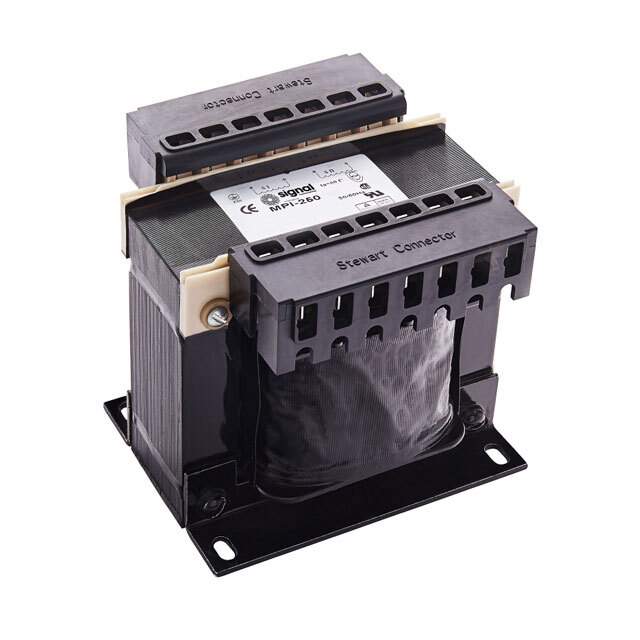

MPI-250-12 Real Image
Same model may have multiple batches, images only for reference.

MPI-250-12

Part No MPI-250-12
Manufacturer Signal Transformer
Catalog Power Transformers
Description PWR XFMR LAMINATED 250VA CHAS MT /
Datasheet
MPI-250-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Signal Transformer
Series MPI
Package Bulk
Type Laminated Core
Voltage - Primary 100V, 115V, 200V, 215V, 230V
Voltage - Secondary (Full Load) Parallel 6V, Series 12V
Current - Output (Max) Parallel 41.7A, Series 20.8A
Primary Winding(s) Dual, Multiple Taps
Secondary Winding(s) Dual
Center Tap No
Power - Max 250VA
Mounting Type Chassis Mount
Termination Style Terminal Block
Dimension 104.80mm L x 104.90mm W
Height - Seated (Max) 98.20mm
Voltage - Isolation 4000Vrms
Weight 6.8 lbs (3.1 kg)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Standard Package 1
Win Source Part Number 1080118-MPI-250-12
Ultra Librarian 3D Model Ultra Librarian MPI-250-12 CAD Model

Description

The MPI-250-12 is a laminated core power transformer from Signal Transformer.

  • Power Rating: 250VA
  • Weight: 6.8 lbs (3.1 kg)
  • Application: power transformer
  • Voltage Isolation: 4000Vrms
  • Primary Voltage: 100V, 115V, 200V, 215V, 230V
  • Secondary Voltage: parallel 6V, series 12V @ full load
  • Primary Winding: dual
  • Secondary Winding: dual
  • Mounting: chassis
  • Dimension: 104.80mm L x 104.90mm W
  • ECCN: EAR99
